TE Connectivity AMP Connectors 1744416-3 — Connector Housings

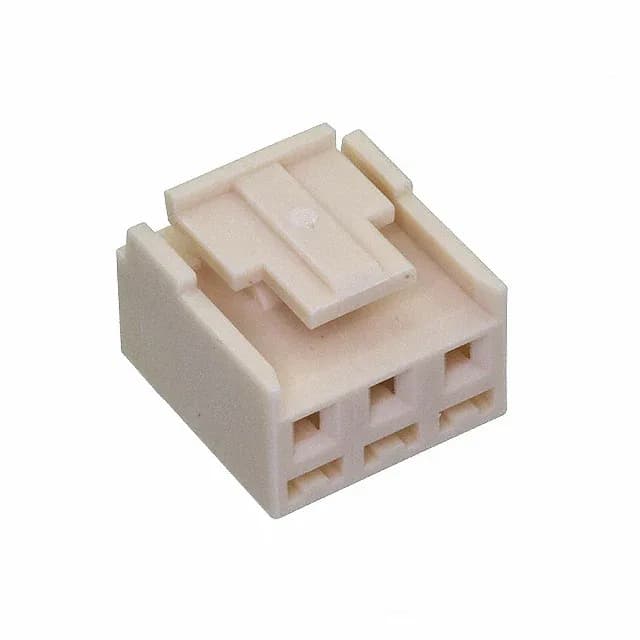

TE Economy Power II 1744416-3, 3-Position Receptacle Housing

MPN1744416-3
Active

TE Connectivity Economy Power II, Receptacle Housing, 3 Positions, 0.156" (3.96mm) Pitch, 1 Row, Latch Lock, Free Hanging, Crimp Termination, Natural, Active

$0.3000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEconomy Power II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1744416-3 specifications
ParameterValue
SeriesEconomy Power II
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.156\" (3.96mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions3

Product details

The natural colour is the raw resin — no dye added, which means consistent dielectric properties across production lots.

No secondary terminal position assurance (TPA) on this housing — the primary latch is what holds the terminals, so verify full insertion during assembly. Pre-terminated leads aren't available — it's a field-cut-and-crimp proposition, which keeps the harness length exact but adds a step at the bench.

RoHS compliant per TE's certification. No UL or CSA marking is listed on the housing itself.

The 1-2069882-6 is a 6-position, 2-row receptacle housing at 0.200" (5.08 mm) pitch — wider spacing and more positions, but a different footprint altogether. The 1744416-3 runs at 0.156" pitch in a single row, so the board layout, header mating half, and wire routing are distinct. No direct substitution; pick by the position count and pitch your BOM calls for.

Frequently asked questions

What is the mating connector for 1744416-3?

Ensures correct pairing in connector system

Is 1744416-3 active or obsolete?

Determines long-term availability and support

What contacts fit 1744416-3?

Since contacts are not included, correct contacts are needed

Where can I buy 1744416-3 in stock?

For sourcing and procurement decisions

What is the pitch and row configuration of 1744416-3?

Critical for PCB layout and space planning

Are there equivalent parts to 1744416-3 from other manufacturers?

Provides alternatives for cost or availability
