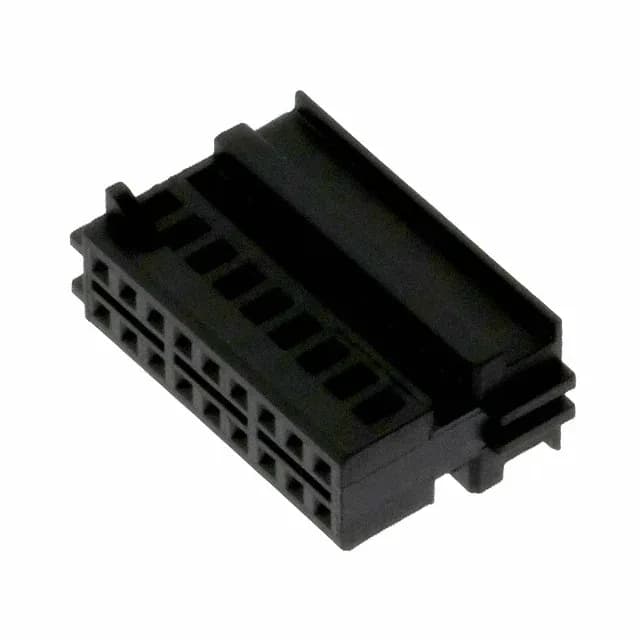

18-Position Micro Quadlok Receptacle Housing for Wire Harness Builds
The 2.54mm pitch and dual-row layout with 3.50mm row spacing match the standard Micro Quadlok header footprint, making this housing the cable-side half for a 2x9 circuit array.
Contacts Sold Separately — Order Crimp Terminals for Your Wire Gauge
For a complete mated pair, pair this receptacle with the corresponding Micro Quadlok header (same 2.54mm pitch, 18 positions, 2 rows) and the correct socket contacts for your wire size.
Detent Lock Retention for Vibration Resistance
The detent lock fastening type provides a positive mechanical latch between the receptacle and header — it clicks into place and holds under vibration without requiring external hardware or screw locks. For harnesses routed in automotive or industrial machinery where connectors see constant motion, this retention style prevents accidental unmate while still allowing field-service disconnection with a pull tab or tool.
No end-of-life notice or successor part is on record. The black PA66 housing, 18-position count, and 2.54mm pitch are the BOM-critical identifiers; confirm the mating header and terminal part numbers before committing the line item.
