TE Connectivity AMP Connectors 174663-2 — Connector Housings

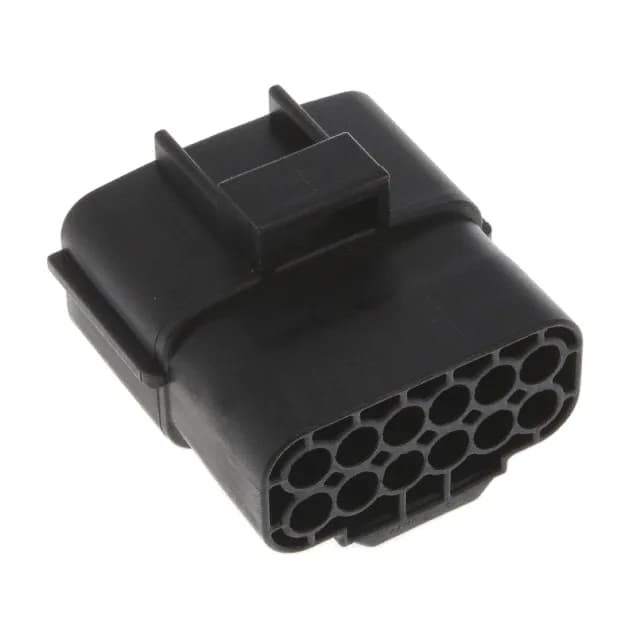

TE 174663-2 EconoSeal J Mark II 070 Receptacle Housing

MPN174663-2
Active

TE Connectivity EconoSeal J Mark II 070 receptacle housing, 174663-2, 12 positions, 2 rows, 5.60mm row spacing, crimp termination, free-hanging, black PBT, -30°C to 105°C.

$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconoSeal J Mark II 070
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

174663-2 specifications
ParameterValue
SeriesEconoSeal J Mark II 070
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-30°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
PackageBulk
Row spacing0.220\" (5.60mm)
Rows2
Contact terminationCrimp
Positions12

Product details

It's a free-hanging (in-line) shell that accepts male pin contacts via crimp termination — the contacts are sold separately, so the BOM needs a line item for the matching terminals. The 5.60mm row spacing gives the contacts enough room for the current these housings typically carry, though the exact ampacity depends on the terminal and wire gauge you pair it with.

The 2-row, 12-position layout means the plug will have the same cavity count and row spacing. For the contacts, you need the male pin crimp terminals specified for the EconoSeal J Mark II 070 series; the housing itself is just the shell, so the terminals are ordered separately. The crimp termination lets you use a standard hand tool or semi-automatic press for the wire preparation, and the free-hanging design means no board footprint to worry about — just strip, crimp, insert, and lock.

The 1-2333134-5 is another EconoSeal J Mark II 070 receptacle, but it's a 30-position, 2-row housing with a 2.00mm pitch and 3.30mm row spacing — a much denser package. The 174663-2's 5.60mm row spacing gives each contact more physical separation, which translates to better creepage and clearance for higher-voltage applications within the series. If your harness needs 12 circuits and the board or device interface expects the wider row spacing, the 174663-2 is the fit; the 30-position sibling is for higher-density bundles where space is tighter.

Frequently asked questions

Where can I buy the 174663-2 available via RFQ confirmation?

The 174663-2 is sourced to order through independent distribution channels. Submit an RFQ for current availability and pricing — stock levels and lead time are confirmed at quote time, not on a static listing.

What contacts are compatible with 174663-2?

The 174663-2 housing accepts male pin crimp terminals from the EconoSeal J Mark II 070 series. Contacts are not included with the housing, so order the matching TE male pin terminals separately for the wire gauge you're using.

What is the mating plug for 174663-2?

The mating half is the corresponding EconoSeal J Mark II 070 plug header with the same 12-position, 2-row, 5.60mm row-spacing configuration. The exact plug order code depends on the keying and locking feature your application requires.

Is the 174663-2 housing sealed or waterproof?

The EconoSeal J Mark II 070 series is designed for automotive and industrial environments where moisture and vibration are present, but the 174663-2 listing does not carry an IP rating or explicit sealed/waterproof claim. For a fully sealed assembly, the housing must be mated with the correct plug and the contacts must be properly crimped and seated with the secondary lock engaged.

What is the current rating for the 174663-2 connector?

The current rating depends on the crimp terminal and wire gauge you pair with this housing. The EconoSeal J Mark II 070 series terminals are typically rated in the 5-7 A range per circuit, but the exact value comes from the terminal datasheet, not the housing alone. The housing's PBT insulation and -30°C to 105°C range support those current levels without derating issues in normal ambient conditions.
