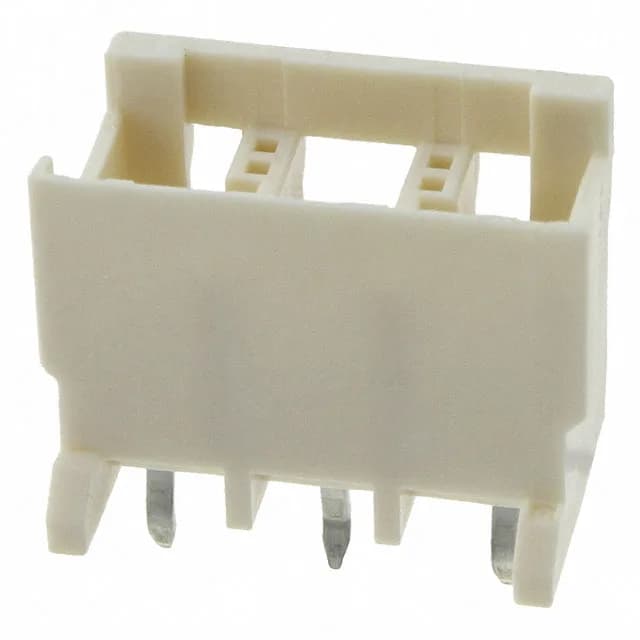

Three-position 2.5mm header for wire-to-board
Its 0.098" (2.50mm) pitch matches the standard GIC receptacle footprint, and the full 4-wall shrouding protects the tab contacts during mating.
Shrouded housing with latch holder
The 4-wall shroud and latch holder fastening type provide a positive lock against vibration-induced disconnect — a step up from a simple detent. Termination options include both press-fit and solder. Press-fit is the cleaner choice for high-reliability backplane builds where rework is a concern; solder works for standard through-hole assembly.
ROHS3 compliant. No direct cross-reference from other brands is documented — the Grace Inertia series is proprietary to TE.
How it compares to 1-2232960-3
The key difference: 1-2232960-3 uses a locking ramp instead of a latch holder, and its voltage rating is 50VAC versus 300VAC on this part. If your application needs the higher voltage headroom, 1747049-1 is the pick.
