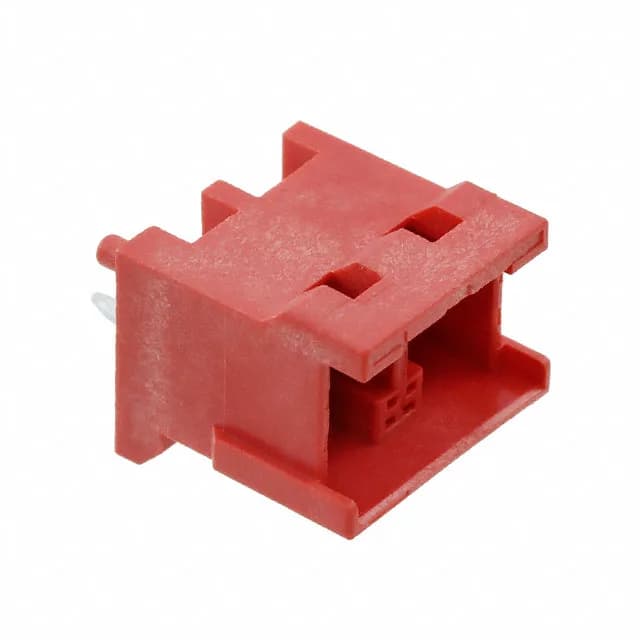

TE Connectivity AMP Connectors Grace Inertia, GIC series header, 2 positions, 0.312" (7.92mm) pitch, shrouded 4-wall, through hole, press-fit/solder termination, tin contacts, UL94 V-0, red insulation.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 300VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.571\" (14.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 1747052-2: A latch holder fastens the pair together — the latch clicks audibly when fully seated and resists vibration loosening.
Termination is listed as press-fit and solder — the through-hole tails can be wave-soldered or pressed into plated holes for a gas-tight joint. The red insulation color is a visual key for the GIC series on the line.
1747052-2 is sourced to order against your BOM quantity. Submit an RFQ for current availability and pricing.
This header mates with a Grace Inertia (GIC) series receptacle housing that accepts tab contacts. Confirm the circuit count and pitch match on the mating half before ordering.
