30-Position Receptacle Housing for Dynamic D-2800 Harnesses

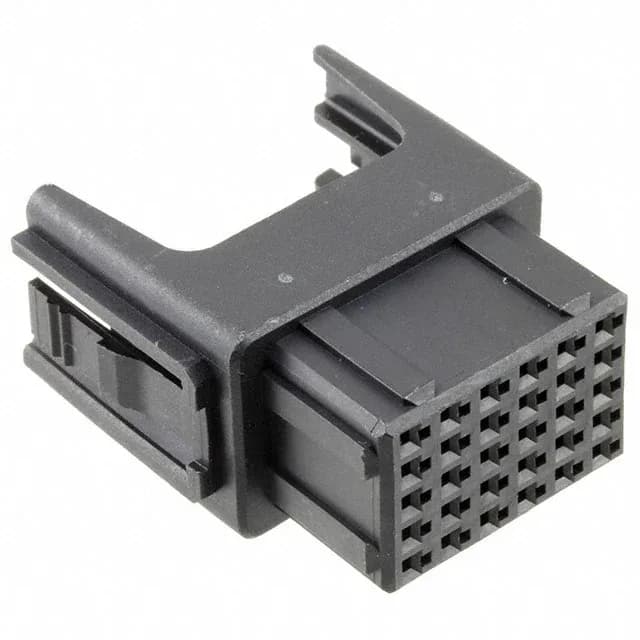

The TE Dynamic D-2800 1747365-1 is a 30-position receptacle housing built for wire-to-wire or wire-to-board harnesses that need a dense, vibration-resistant interconnect.
What the 30 Circuits and 5 Rows Mean for the Build
Thirty positions at 3.00 mm pitch with 5 rows means the contact density is higher than a typical 2-row layout at the same pitch — the 3.75 mm row spacing gives enough room for the crimp barrel and wire bend radius between rows. For a harness builder, this translates to a narrower housing body than a 2-row 30-position part would need, but the wire exit on the back side is more spread out across five rows, so the cable breakout has to be planned row by row. The 30-circuit count matches a BOM line that needs 30 signal or low-power connections in one connector — common for industrial control cabinets, conveyor systems, or packaging machinery where a single harness carries all the I/O to a sensor bank.
You'll need the matching Dynamic D-2800 female crimp socket terminal (typically the 1-928918-1 or similar series terminal) to populate the 30 cavities. The black color is standard for the D-2800 series and helps with visual identification in a multi-connector panel.
