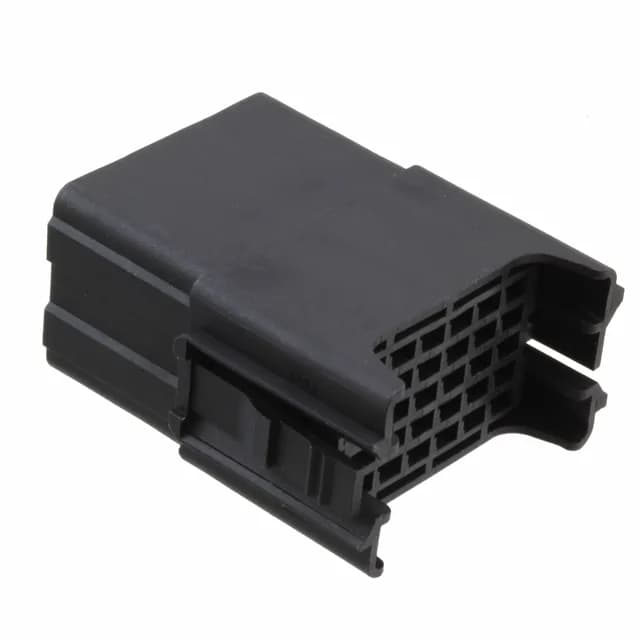

30-Circuit Plug Housing for High-Density Harnesses
This is the plug half — it mates with the Dynamic D-2800 receptacle housing 1747365-1, which shares the same 5-row, 3.00 mm pitch arrangement.
The housing accepts tab-style contacts terminated by crimp, which means you also need the correct crimp tool for the wire gauge you're running. The 5-row, 30-position layout means the terminal insertion sequence matters: the rows are staggered, and a missing or partially seated terminal in an inner row is hard to spot without a TPA (terminal position assurance) insert — this housing doesn't include one, so verify full seat by feel or with a back-probe.
Mating Half and Latch Lock
This plug housing mates with the Dynamic D-2800 receptacle housing 1747365-1, which is a 30-position, 5-row, 3.00 mm pitch female socket housing with a latch holder. The free-hanging mount means it's a field-serviceable inline connector; you're not committed to a board location. For a board-mounted mate, you'd use the Dynamic D-2800 vertical or right-angle header, but those are a separate product line — confirm the header part number against your PCB footprint.
