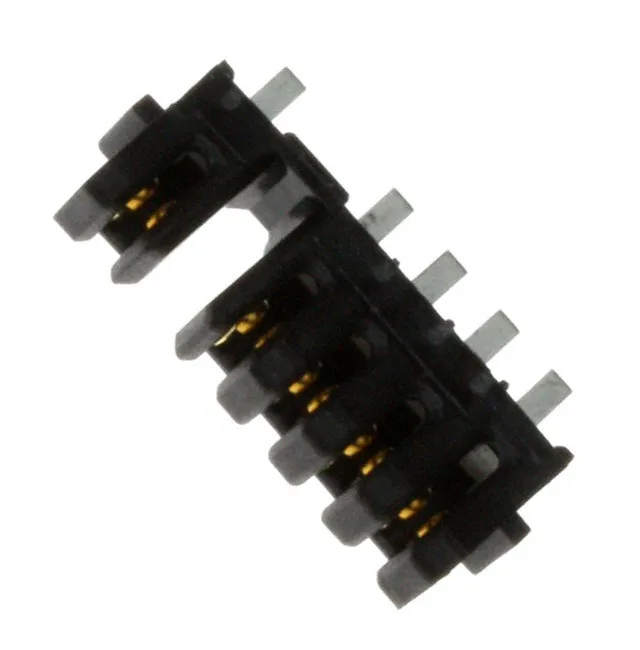

The TE Connectivity 1747367-1 is a 5-position battery connector receptacle, using female blade sockets in a black housing at 0.098" (2.50 mm) pitch. This is a dedicated battery-style interconnect — the blade contact geometry is designed for power distribution in portable equipment, not general signal duty. The through-hole solder termination gives the board joint the mechanical strength to handle the strain from a battery pack or cable assembly.
Five Circuits at 2.50 mm — Footprint Fit
Five positions on a 2.50 mm pitch. The 5-circuit count matches common battery pack configurations.
Through-Hole Mount for Strain-Bearing Duty
Through-hole solder termination is the right call here — a battery connector sees insertion and extraction forces that would fatigue an SMT joint over time. The solder tails anchor into plated through-holes, transferring mechanical load to the board substrate rather than the pad. This is the same approach used in power tool and UPS battery interconnects.
