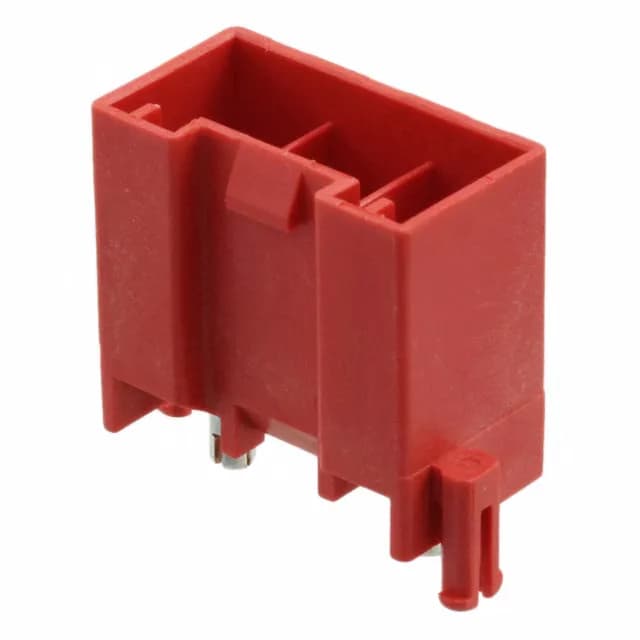

TE Grace High Current (GHC) header, order code 1747996-2, 2 positions, single row, 0.488" (12.40 mm) pitch, 600 VAC, tin-plated mating contacts, through-hole, solder termination.
TE 1747996-2 GHC Header, 2-Pos 12.40mm
MPN1747996-2
Active
TE Grace High Current (GHC) header, order code 1747996-2, 2 positions, single row, 0.488" (12.40 mm) pitch, 600 VAC, tin-plated mating contacts, through-hole, solder termination.
$1.2500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Grace High Current, GHC |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.705\" (17.91mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.488\" (12.40mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 1747996-2 in this component family?
No same-series peer with a different position count at the same 12.40 mm pitch is listed in the evidence. The 2-position 1747996-2 is the only member of the GHC header line confirmed at this pitch and row count.
What compliance documentation does this brand provide for 1747996-2 (RoHS, REACH, UL, IEC)?
RoHS and REACH compliance status is not explicitly recorded in the evidence — confirm with the manufacturer datasheet or a compliance inquiry at RFQ.
