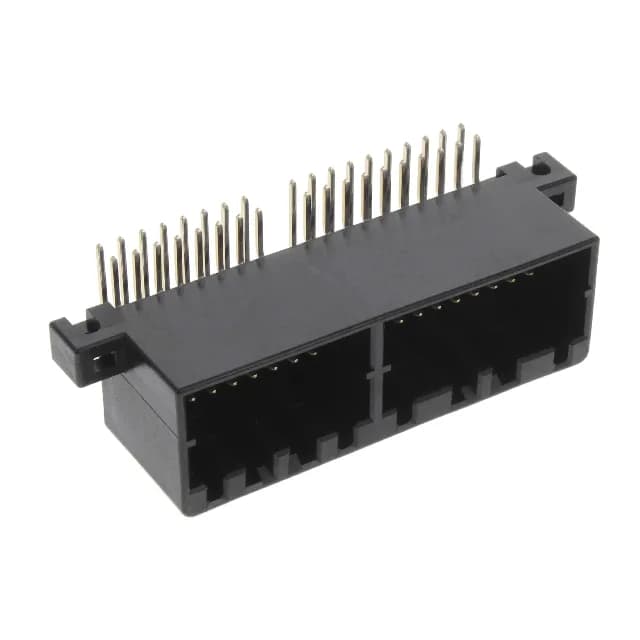

TE Connectivity AMP Connectors Multi-Lock header, order code 174912-2, 36 positions, dual row, 2.50 mm pitch, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall, latch holder fastening.
TE 174912-2 Multi-Lock Header, 36 Pos, 2.50mm
MPN174912-2
Active
TE Connectivity AMP Connectors Multi-Lock header, order code 174912-2, 36 positions, dual row, 2.50 mm pitch, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall, latch holder fastening.
$6.6290Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Multi-Lock |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Fastening type | Latch Holder |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.665\" (16.90mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 36 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
Product details
Frequently asked questions
What is the connector style and mounting configuration of the 174912-2?
The 174912-2 is a Board to Cable/Wire style header with through-hole, right-angle mounting and solder termination.
