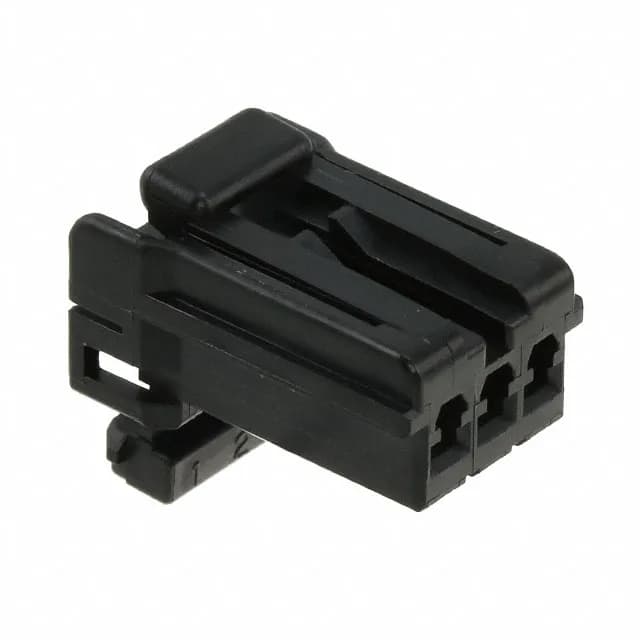

TE Connectivity Multi-Lock, 174921-2, Plug Housing, 3 Positions, 1 Row, 3.50mm Pitch, Crimp Termination, Free Hanging, Latch Holder, Black PBT, -30°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Multi-Lock |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -30°C ~ 105°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
This is a crimp-style housing — contacts are ordered separately.
The female socket contacts are crimp-terminated and must be purchased separately. Match the wire gauge and plating (tin vs gold) to the application duty — gold for high-cycle or corrosive environments, tin for cost-sensitive fixed installations.
The pitch is 0.138" (3.50 mm). That is the centre-to-centre spacing between adjacent contact positions.
The 174921-2 accepts female socket contacts with a crimp termination. The exact TE part number for the contact depends on wire gauge and plating — consult the Multi-Lock series application drawing for the correct terminal.
Yes, the 174921-2 is ROHS3 compliant.
The housing is moulded from Polybutylene Terephthalate (PBT), a common high-temperature thermoplastic for connector applications.
