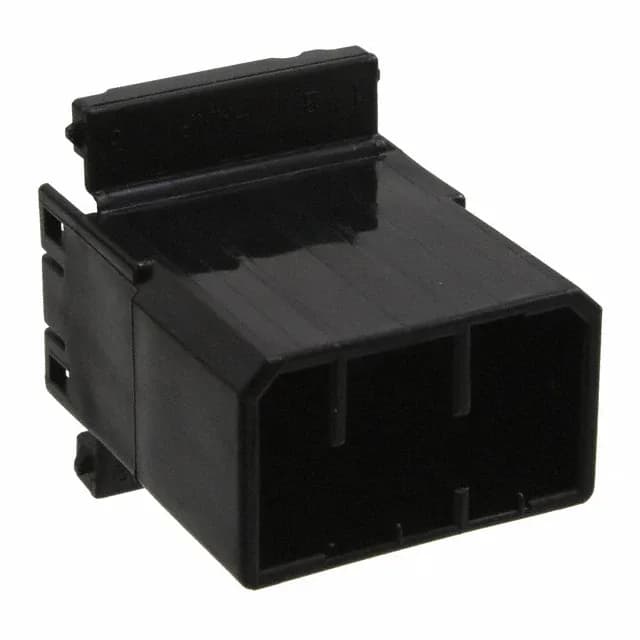

TE Connectivity Multi-Lock receptacle housing, 174931-2, 8 circuits, 2 rows, 5.90mm row spacing, free-hanging crimp termination, black PBT, -30°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Multi-Lock |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -30°C ~ 105°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Package | Tray |
| Row spacing | 0.232\" (5.90mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
The tab contacts are the crimp terminals that go into this housing; the exact terminal part number depends on wire gauge, but the series supports tab-style crimp contacts. The 5.90 mm row spacing and 2-row layout mean the mating header must match that pitch and row count — a single-row or different-row-spacing header will not align.
The 174931-2 is a receptacle housing that accepts tab-style crimp contacts from the Multi-Lock series. Contacts are not included with the housing — order the correct tab terminal separately based on your wire gauge.
The 174931-2 receptacle mates with a Multi-Lock plug header of the same 8-position, 2-row configuration and 5.90 mm row spacing — the matching header shares the 174931 base number.
