10-Position Dual-Row Receptacle Housing for Multi-Lock Harnesses

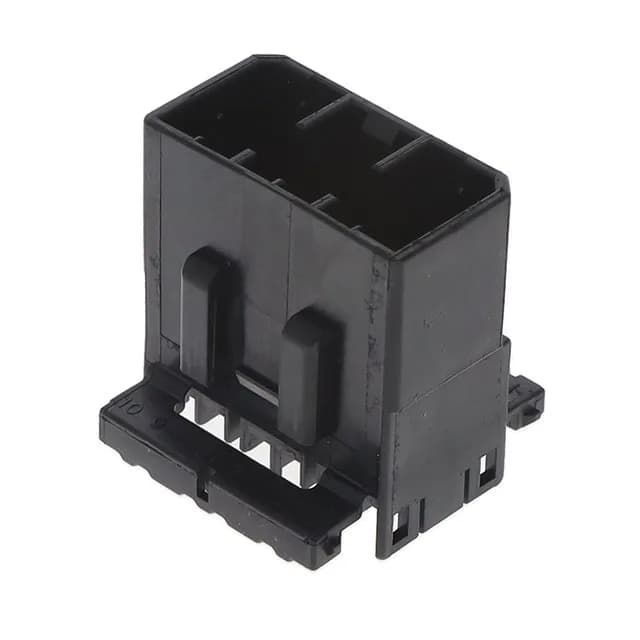

The TE Connectivity 174932-2 is a 10-position, 2-row receptacle housing from the Multi-Lock series, designed for free-hanging (in-line) wire-to-wire or wire-to-board harness applications. The housing is moulded in black polybutylene terephthalate (PBT) with a 5.90 mm row spacing, giving it the dimensional envelope for moderate-current power and signal interconnects in automotive, industrial, and appliance environments. Operating temperature spans -30°C to 105°C, covering most under-hood and cabinet conditions.
Contacts Ordered Separately — Crimp Termination Required
The 174932-2 ships as an empty housing — contacts are not included. It accepts tab-type crimp contacts that must be ordered as a separate line item. The crimp termination allows field-assembled or production-harness wiring; the housing provides the mechanical retention and polarisation for the mated pair. Confirm the correct TE tab terminal part number for your wire gauge before the BOM is locked.
