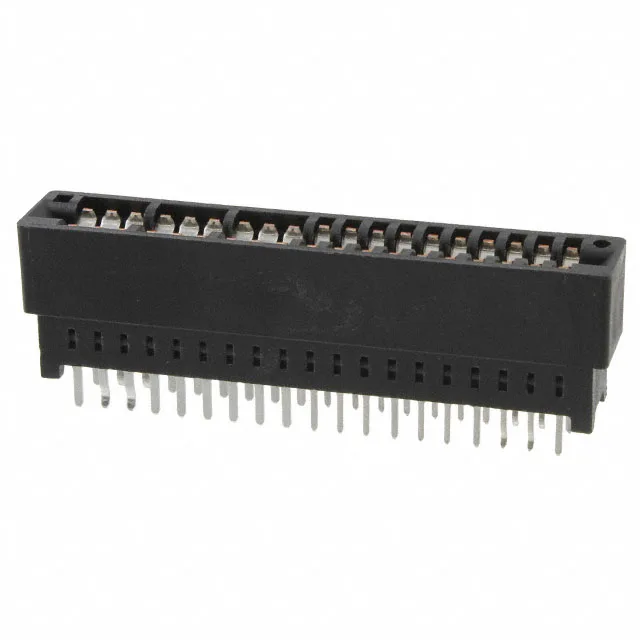

TE Connectivity AMP Connectors 1761426-3
MPN1761426-3
Active
CONN EDGE DUAL FML 26POS 0.100
$9.22Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesStandard Edge II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Standard Edge II |
| Card type | Non Specified - Dual Edge |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Material - insulation | Polyester, Glass Filled |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Bulk |
| Features | Board Lock |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 26 (20 + 6 Power) |
| Contact finish thickness | 15.0µin (0.38µm) |
