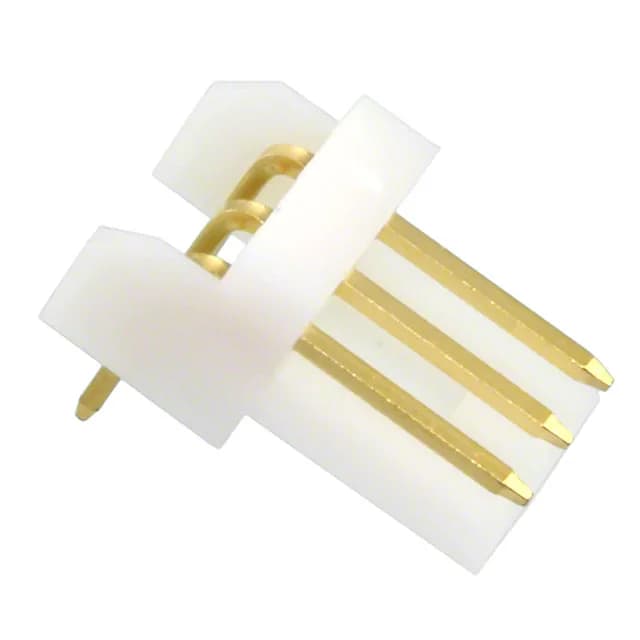

TE Connectivity AMP Connectors EI Series, Board to Cable/Wire, 3 Positions, 0.098" (2.50mm) Pitch, Through Hole, Right Angle, Solder Termination, Shrouded - 1 Wall, Latch Holder, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | EI |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC, 350VDC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -20°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.264\" (6.70mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact length - post | 0.142\" (3.60mm) |
| Contact length - mating | 0.295\" (7.49mm) |
At 0.098" (2.50mm) pitch, this header fits a compact board footprint for a 3-circuit interface. All 3 positions are loaded, so no blank or dummy pins — every circuit is active.
176153-3 is an active TE Connectivity AMP Connectors part. We source it per RFQ against your required quantity. Contact us for current pricing and lead time.
The mating pitch is 0.098" (2.50mm).
Yes, it is ROHS3 compliant.
