TE Connectivity AMP Connectors 1761605-7 — Pin Headers, Sockets & Housings

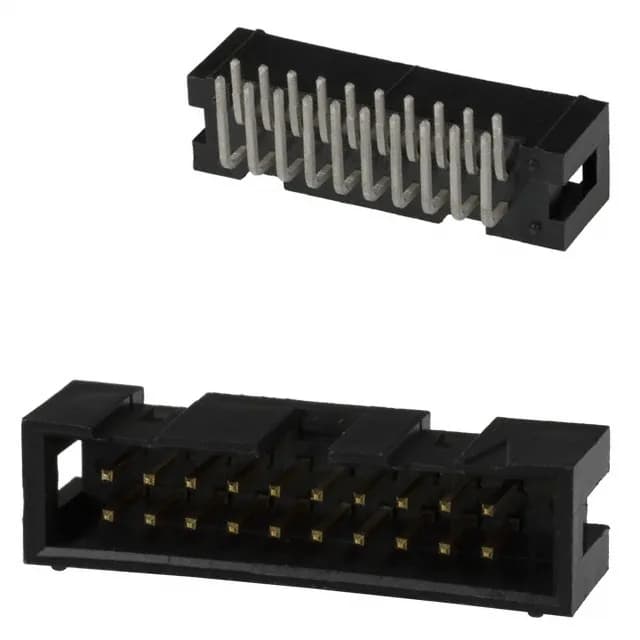

1761605-7 TE Connectivity AMP-Latch 20-Pin Right-Angle

MPN1761605-7
Obsolete

TE Connectivity AMP-Latch shrouded header, 20 circuits, 2 rows, 0.100" pitch, right-angle through-hole, gold-plated mating pins, rated 1 A per contact at 250 VAC.

$8.6800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1761605-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1761605-7 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

1761605-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1761605-7: Solder termination keeps the assembly cost low for through-hole wave-solder lines.

Lifecycle Reality — Obsolete, But Still Sourced

No stock-holding claim is made; sourcing is per request against your BOM quantity.

This header mates with AMP-Latch IDC socket connectors that accept 0.100" pitch ribbon cable. Through-hole solder termination: the post length is 0.102" (2.60 mm) with 100 µinch tin finish, compatible with standard 0.062" PCBs.

Cross-Shop Comparison — 20 vs 26 Positions

The 20-position here is a lower-density option for designs that don't need the extra lanes.

Frequently asked questions

Is 1761605-7 obsolete?

Yes, TE Connectivity has marked this part as obsolete. No official replacement is listed. It is available through independent surplus channels — confirm availability at quote time.

What is the mating connector for 1761605-7?

It mates with AMP-Latch IDC socket connectors designed for 0.100" pitch ribbon cable. The socket has a push-pull latch that engages the header shroud.
