26-Position Dual-Row Header for Board-to-Cable/Wire

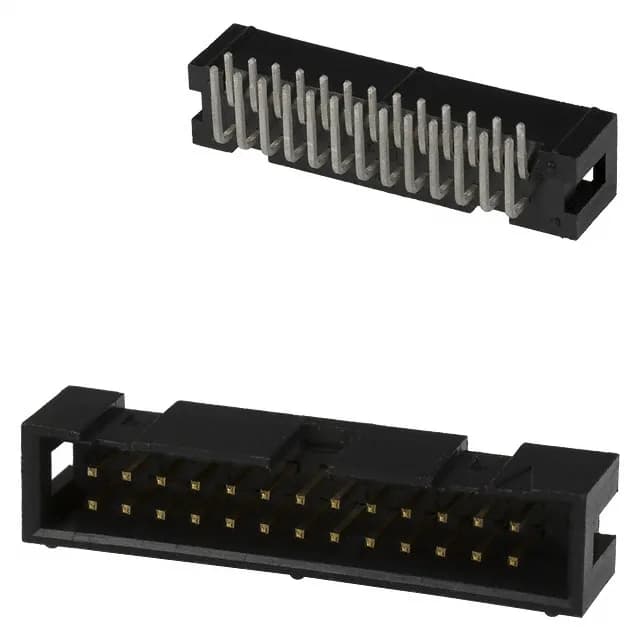

The 1761605-9 is a 26-position, dual-row header from the AMP-Latch series, designed for board-to-cable/wire interconnect.
Available through independent distribution channels; quantities are lot-specific and confirmed at RFQ. No stock-holding claim is made — sourced per request against the BOM quantity.
Mates with AMP-Latch receptacles that accept 0.100" pitch IDC ribbon cable or discrete crimp contacts. The push-pull fastening type provides a positive latching engagement — no secondary lock, so the mating pair relies on the latch for vibration retention. Termination is solder to through-hole posts: the contact length after the board is 0.102" (2.60 mm), suitable for standard 1.6 mm PCBs with a solder fillet visible on the bottom side. The post finish is 100 µinch tin — compatible with lead-free and tin-lead solder processes. A keying slot in the housing prevents mis-mating with non-keyed receptacles — verify the key position matches the mating half before committing to the BOM.
