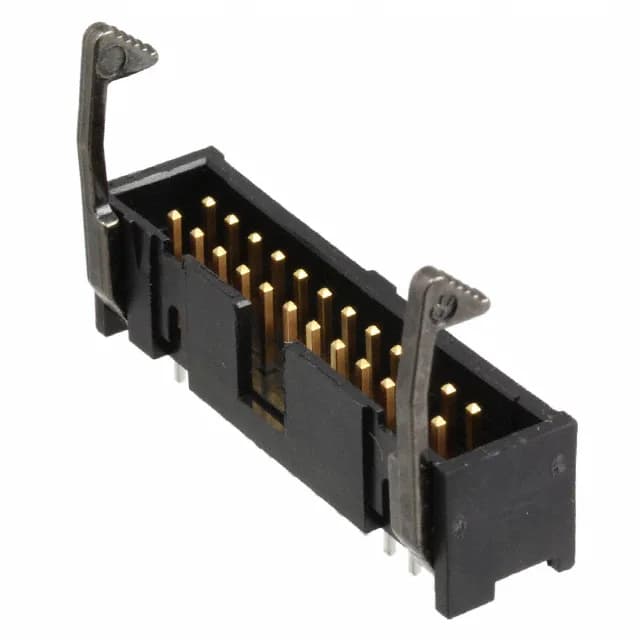

TE Connectivity AMP-Latch series, 1761606-8, board-to-cable/wire header, 24 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, shrouded 4-wall with latch lock/eject hooks, gold or gold-palladium mating finish, 1 A per contact, 250 VAC, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1761606-8: It uses a shrouded 4-wall housing with latch lock/eject hooks for secure mating with the corresponding IDC receptacle.
Insulation is black PBT rated UL94 V-0, with a height of 0.404" (10.26mm).
Yes, it is ROHS3 compliant.
It is a through-hole mount header with 24 positions (all loaded) in two rows at 0.100" (2.54mm) row spacing. The pinout follows standard AMP-Latch numbering — consult the series datasheet for the exact footprint.
The key differentiator is the latch lock/eject hooks (long) for secure cable retention. Other AMP-Latch headers may use short ejectors or no latch. The 24-position count and 2.54mm pitch are standard across the series.
