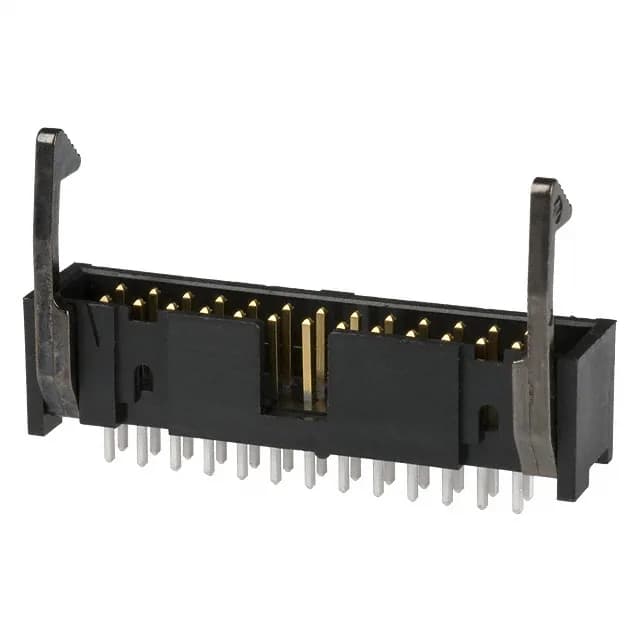

TE Connectivity AMP-Latch, 26-position, 2-row, 0.100" (2.54mm) pitch, shrouded header, through-hole solder, latch lock/eject hooks, 1A per contact, 250VAC, -65°C ~ 105°C, UL94 V-0, RoHS3 compliant.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1761606-9: This 26-position, 2-row header from the AMP-Latch series mates with matching IDC sockets or crimp receptacles for a reliable board-to-cable interconnect. The shrouded 4-wall design with a keying slot prevents mis-mating, while the latch lock/eject hooks secure the cable connector and allow tool-less disconnect — useful in panels where the cable assembly needs periodic service.
0.100" (2.54mm) pitch, 26 positions loaded in two rows.
Yes, ROHS3 compliant per TE Connectivity's compliance documentation.
1A per contact at 250VAC.
