Right-angle AMP-Latch header for cable-to-board harnesses

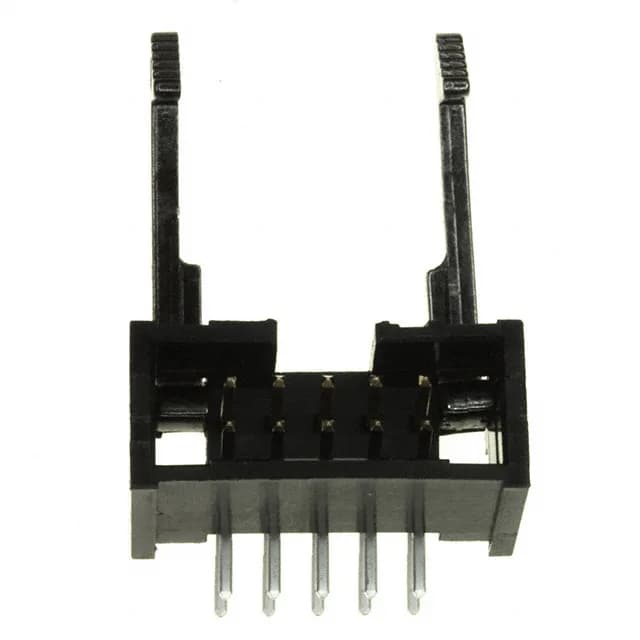

The 1761607-3 is a 10-position, 2-row header from TE's AMP-Latch series, designed to mate with IDC ribbon cable sockets. Rated 1A per contact at 250VAC, this is a signal-level interconnect — fine for logic, sensor, and low-power I/O, not for a power bus. The gold or gold-palladium mating finish (30.0µin) handles repeated connect/disconnect cycles without fretting.
Mounting and orientation for board layout
The 0.102" (2.60mm) post length suits standard 1.6mm PCBs — the solder tail protrudes enough for a reliable fillet without bottoming out against a second board. The keying slot prevents mis-mating with the wrong cable socket — a small detail that saves a lot of debug time on the line.
