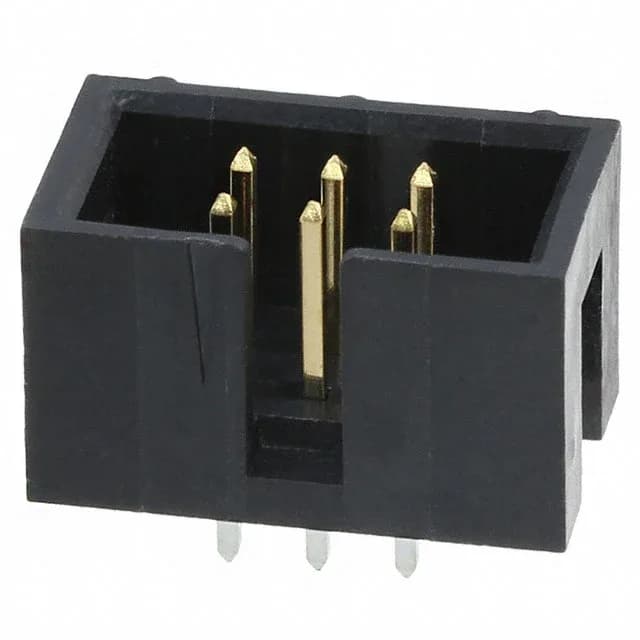

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder Termination, Gold Mating Finish, 1A per Contact, 250VAC, Shrouded - 4 Wall, Keying Slot, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The post tails are tin-plated (100.0µin) for reliable solder wetting in a standard through-hole wave-solder process. The 6-position count with all positions loaded gives a complete 6-wire interface in a compact dual-row footprint.
Yes, the header includes a keying slot that prevents mismating with non-keyed AMP-Latch receptacles. This is a standard feature on the shrouded version of the series.
Yes, it is listed as ROHS3 Compliant, meeting the latest RoHS exemption criteria.
