TE Connectivity AMP Connectors 1761681-3 — Pin Headers

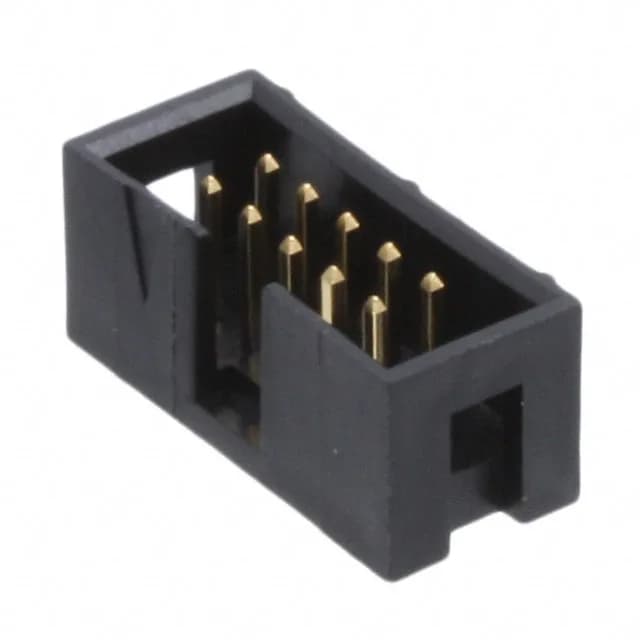

1761681-3 TE Connectivity AMP-Latch Header 10 Pos 2.54mm

MPN1761681-3
Active

TE Connectivity AMP-Latch, 1761681-3, Header, 10 Positions, 2.54mm Pitch, Dual Row, Shrouded - 4 Wall, Through Hole, Gold Mating Finish, 1A per Contact, 250VAC, UL94 V-0, ROHS3 Compliant

$1.6500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1761681-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1761681-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT)

All specifications

1761681-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-Cable Wiring with the 10-Position AMP-Latch Header

The push-pull fastening type allows quick engagement and disengagement without tools.

Sourcing and Compliance for the BOM Line

Supplied in bulk packaging.

Mating Half and Build-to-Print Checklist

The 1761681-3 mates with AMP-Latch socket housings that accept 0.100-inch pitch IDC ribbon cable. The mating contact length is 0.240 inches (6.10mm), and the post length is 0.114 inches (2.90mm) for through-hole soldering. The keying slot prevents incorrect orientation during assembly.

Frequently asked questions

Is 1761681-3 RoHS compliant?

Yes, the 1761681-3 is ROHS3 compliant.

What is the pitch of 1761681-3?

The mating pitch is 0.100 inches (2.54mm), and the row spacing is also 0.100 inches (2.54mm).

Is 1761681-3 shrouded?

Yes, the header is shrouded with four walls, providing full pin protection and alignment during mating.
