The 1761681-5: It's a Board to Cable/Wire style, meaning the pins stay on the PCB and the mating half brings the cable. Rated 1A per contact at 250VAC, this is a signal-level interconnect — think I/O, control lines, or low-power sensor feeds — not a power bus. The four-wall shrouding and a keying slot protect the pins and prevent plugging the wrong harness into this header — useful when a panel has several similar-looking connectors.

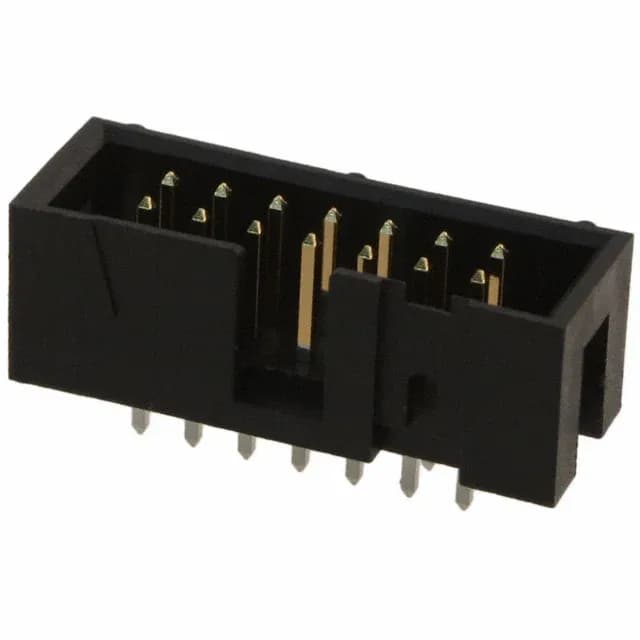

1761681-5 TE AMP-Latch Header 14 Pos 2.54mm
MPN1761681-5
Active
TE Connectivity AMP-Latch, Header, Male Pin, 14 Positions, 0.100" (2.54mm) Pitch, 2 Row, Through Hole, Solder, Shrouded - 4 Wall, Gold Mating Finish, 1A per Contact, 250VAC, Black, UL94 V-0
$1.9200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the current rating of 1761681-5?
Rated 1A per contact at 250VAC. This is a signal-level header; do not use it for power distribution.
What is the mating connector for 1761681-5?
This header mates with a standard AMP-Latch IDC socket or a crimp-style receptacle on the same 0.100" pitch. The shrouded 4-wall design and keying slot ensure correct orientation and prevent mis-mating.
Is 1761681-5 RoHS compliant?
Yes, it is ROHS3 Compliant.
