TE Connectivity AMP Connectors 1761681-7 — Pin Headers

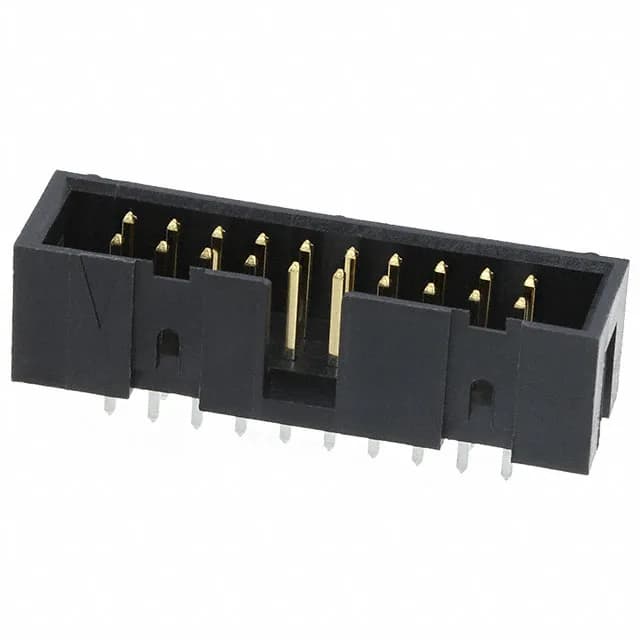

1761681-7 TE Connectivity AMP-Latch Header 20 Pos 2.54mm

MPN1761681-7
Active

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, Male Pin, 20 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Gold Mating Finish, 1A per Contact, 250VAC, UL94 V-0, Active

$2.2300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1761681-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1761681-7 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT)

All specifications

1761681-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Rated 1A per contact at 250VAC, the current limit comes from the narrow contact beam and the PCT housing's thermal rise — fine for signal-level I/O, not for power distribution.

Footprint and pinout — what to check before layout

Sourcing and compliance — active, RoHS, and how to buy

ROHS3 compliant, with a UL94 V-0 PCT housing.

How this compares to the 26-position sibling 1761681-9

The 26-position variant (1761681-9) shares the same 0.100" pitch, 2-row layout, gold mating finish, and shrouded housing. If your BOM calls for 26 I/O lines, the 1761681-9 is a direct swap on the same series; no need to re-qualify the mating half or housing material.

Frequently asked questions

Is 1761681-7 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the pinout of 1761681-7?

All 20 positions are loaded in a 2x10 grid. The pinout is a straight row-to-row mapping — no skipped or empty positions.

What is the mating connector for 1761681-7?

It mates with a standard AMP-Latch IDC ribbon-cable receptacle that has a 0.100" pitch, 2-row layout, and a keying slot. The 4-wall shroud guides the receptacle into alignment.
