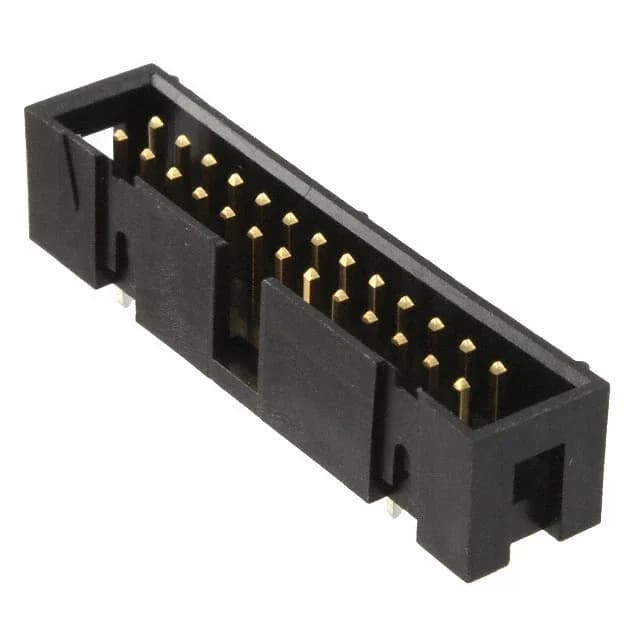

TE Connectivity AMP-Latch series, 1761681-9, board-to-cable/wire header, 26 positions, 2 rows, 0.100" (2.54 mm) pitch, through hole, solder termination, shrouded, push-pull fastening, gold mating finish, 1 A per contact, 250 VAC, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1761681-9: It mates with AMP-Latch IDC socket connectors, with a push-pull fastening system and a keying slot to prevent mis-mating.
Mating contact length is 0.240" (6.10 mm); the post length for soldering is 0.114" (2.90 mm).
The mating pitch is 0.100" (2.54 mm), with a row spacing of 0.100" (2.54 mm) — standard for AMP-Latch IDC systems.
Yes, this header is part of the AMP-Latch series and mates with AMP-Latch IDC socket connectors. The keying slot and 4-wall shrouding ensure correct alignment.
