TE Connectivity AMP Connectors 1761685-9 — Pin Headers

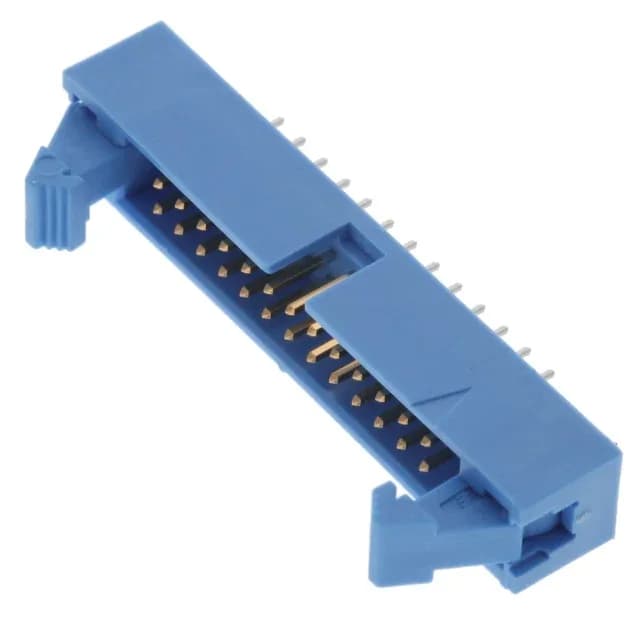

1761685-9 TE AMP-Latch Header, 26 Pos, 2.54mm, Gold

MPN1761685-9
Active

TE Connectivity AMP-Latch, 26-position shrouded header, 2.54mm pitch, through-hole, gold-plated male pins, latch lock/eject hooks, UL94 V-0, RoHS3

$9.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1761685-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1761685-9 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

1761685-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

It mates with a matching IDC socket or crimp receptacle to route signals from the PCB to a harness. The 0.100-inch (2.54mm) pitch and 0.100-inch row spacing match the standard ribbon-cable footprint, making this header a direct fit for 26-conductor IDC assemblies.

Locking and keying for field reliability

Latch lock/eject hooks on the short side of the housing lock the mating connector in place, preventing disconnection under vibration or cable strain.

Sourced per RFQ — confirm the BOM quantity and target lead time at quote. The part is available in bulk packaging.

How the 26-position version compares to the 20-position sibling

Frequently asked questions

What is the mating connector for 1761685-9?

The 1761685-9 mates with a 26-position AMP-Latch IDC socket or crimp receptacle that matches the 2.54mm pitch and 2-row layout. The latch lock/eject hooks on the header engage the corresponding slots on the receptacle housing.

Is 1761685-9 RoHS compliant?

Yes, the 1761685-9 is RoHS3 compliant.
