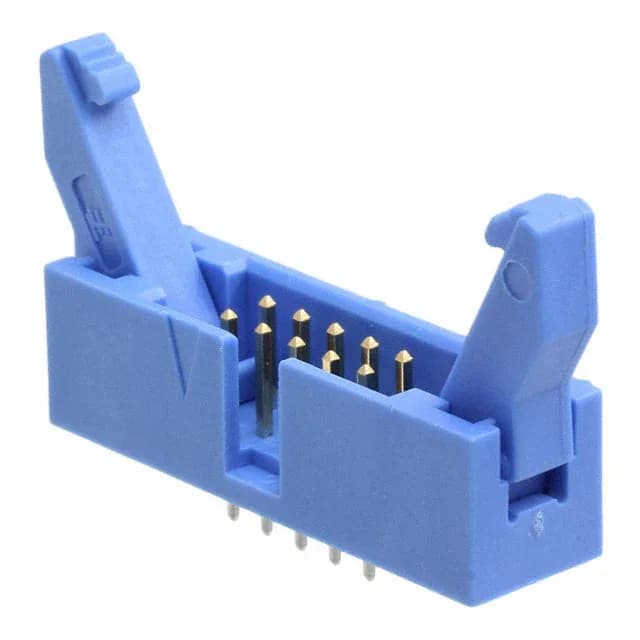

TE Connectivity AMP-Latch series header, 1761686-3, 10 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded - 4 wall, through-hole solder termination, male pin, gold mating finish, 1A per contact, 250VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1761686-3: The 4-wall shrouded housing with a keying slot and latch lock/eject hooks mates with the matching AMP-Latch IDC socket — the same footprint used across the series for board-to-cable/wire connections.
Housing is polybutylene terephthalate (PBT) rated UL94 V-0 — the flame rating covers equipment inside an enclosure where the connector is part of the flammability path.
Yes — 4-wall shrouded housing with a keying slot and latch lock/eject hooks. The shroud protects the pins and guides the mating socket into alignment.
Sourced per RFQ through independent distribution.
