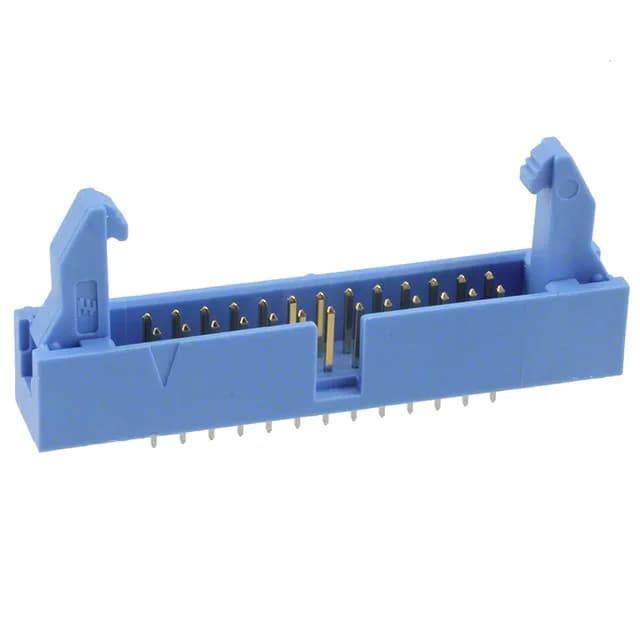

TE Connectivity AMP-Latch series, 1761686-9, Board to Cable/Wire header, 26 circuits, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, male pin contacts with gold mating finish, latch lock/eject hooks.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1761686-9 is a 26-position, 2-row header from the TE AMP-Latch series, designed to mate with standard 0.100-inch pitch IDC ribbon cable sockets.
Confirm the mating half — a standard AMP-Latch 26-position IDC socket (e.g., 1-111626-6 or similar) — before committing the line.
This header mates with a standard AMP-Latch 26-position IDC socket (e.g., TE part 1-111626-6 or equivalent). The latch lock/eject hooks engage the socket's side slots for secure retention.
Yes, the 1761686-9 is ROHS3 compliant per the manufacturer's listing.
