TE Connectivity AMP Connectors 176287-2 — Connector Housings

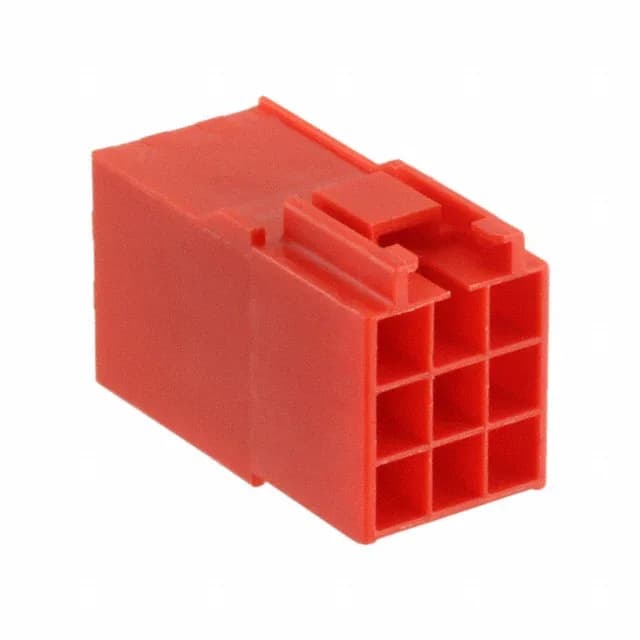

TE Connectivity 176287-2 Universal Power Receptacle Housing

MPN176287-2
Active

TE Connectivity Universal Power receptacle housing, 9 positions, 3 rows, 0.156" (3.96mm) pitch, 0.181" (4.60mm) row spacing, free hanging, crimp termination, latch lock, red PA66, -30°C to 105°C.

$0.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUniversal Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

176287-2 specifications
ParameterValue
SeriesUniversal Power
TypeTab
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorRed
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.156\" (3.96mm)
PackageBulk
Row spacing0.181\" (4.60mm)
Rows3
Contact terminationCrimp
Positions9

Product details

9-Circuit, 3-Row Universal Power Receptacle Housing

Three rows at a 0.156" (3.96mm) pitch with a 0.181" (4.60mm) row spacing give this housing a compact but serviceable footprint for routing 9 power or signal circuits through a single connector interface.

Contacts Not Included — Order Terminals Separately

The note "Contacts Not Included" means you must order the matching tab-type crimp terminals separately — typically TE part numbers from the Universal Power contact family. The housing uses crimp termination, so the wire assembly requires a separate crimp tool and terminal order to complete the harness.

Frequently asked questions

Does the 176287-2 include contacts?

No, the 176287-2 ships as a bare housing only. The note "Contacts Not Included" means you must order the matching tab-type crimp terminals separately to complete the connector assembly.

What is the mating connector for 176287-2?

The 176287-2 receptacle mates with the corresponding Universal Power plug housing (same 3.96mm pitch, 3-row layout) that accepts female socket contacts. The latch lock on the receptacle engages with the plug's locking ramp.
