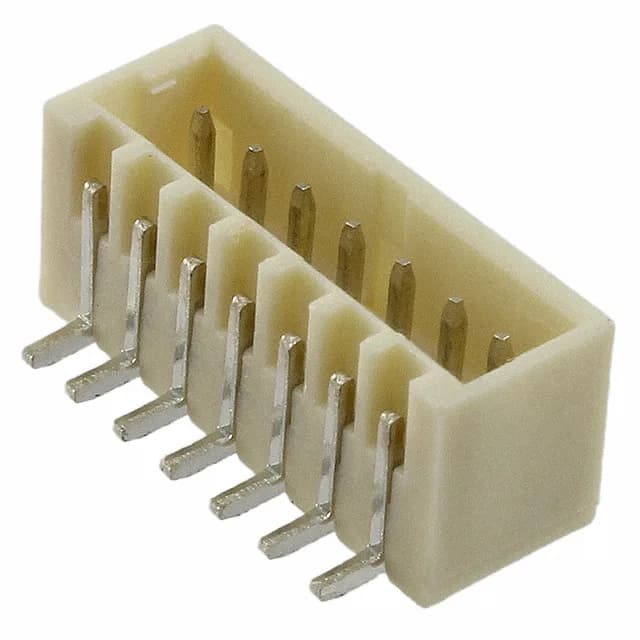

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series header, 1775443-7, board-to-cable/wire, 7 positions single row, 1.50 mm pitch, shrouded - 4 wall, surface mount solder termination, tin-plated male square pins, 3 A, 250 VAC, -55°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 1775443-7: This TE HPI series header mates with a wire-to-board receptacle at 1.50 mm pitch — a compact footprint for signal-level power distribution in automotive, industrial, and medical harnesses.
The mating pitch is 0.059" (1.50 mm). This is the center-to-center distance between adjacent pins.
Yes, it is ROHS3 Compliant per the lifecycle listing.
