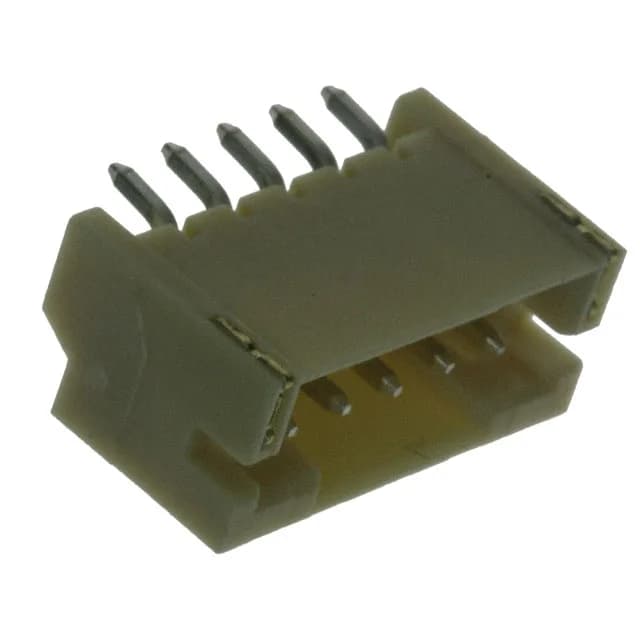

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1775469-5, Board to Cable/Wire, shrouded header, 5 positions, 1 row, 2.00mm pitch, surface mount right-angle, tin contacts, 3A, 250V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.139\" (3.53mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
At 2.00mm pitch, this header keeps board routing density higher than a standard 0.100-inch (2.54mm) header, but without forcing the tighter clearances of 1.27mm or 1.00mm.
The header has a mating pin length of 0.139 inches (3.53mm) and an insulation height of 0.217 inches (5.51mm). Confirm the mating half part number from the HPI series documentation before committing the BOM line.
The 1775469-5 is a single-row, 5-position header with all positions loaded. Pin 1 is typically marked on the housing or the datasheet drawing. The square male pins are arranged in a straight row at 2.00mm pitch.
No direct cross-reference or replacement part is listed by TE for the 1775469-5. It is a specific member of the High Performance Interconnect (HPI) series. For a pin-compatible alternative, check other HPI series headers with the same 2.00mm pitch, 5 positions, and SMT right-angle orientation — but verify the shroud and solder retention features match your application.
Yes, the HPI series lists Automotive as one of its target applications, alongside General Purpose, Industrial, and Medical.
