TE Connectivity AMP Connectors 1775469-7 — Pin Headers

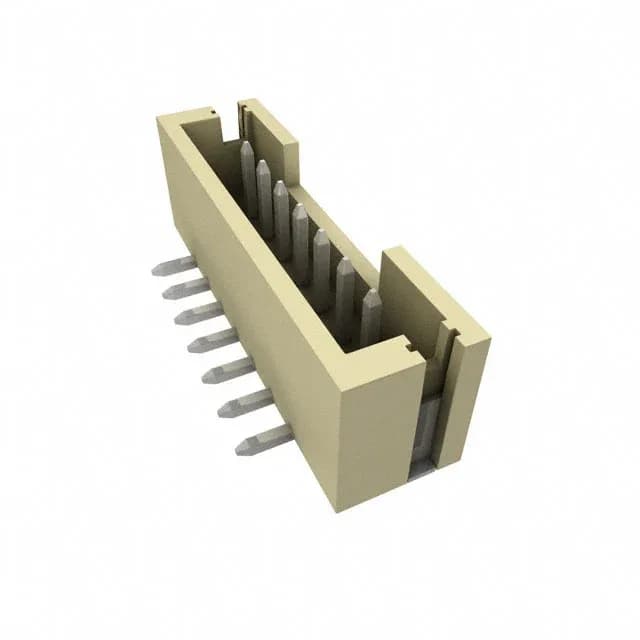

1775469-7 TE Connectivity 2mm Right-Angle SMT Header, 7 Pos

MPN1775469-7
Active

TE Connectivity AMP Connectors, High Performance Interconnect (HPI) series, Board to Cable/Wire header, 7 positions, 1 row, 2.00mm pitch, shrouded 4-wall, Surface Mount Right Angle, 3A, 250V, Tin contacts, UL94 V-0, -25°C ~ 85°C

$0.7915Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1775469-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1775469-7 key specifications
ParameterValue
SeriesHigh Performance Interconnect (HPI)
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.217\" (5.51mm)
Insulation materialPolyamide (PA9T), Nylon 9T
Material flammability ratingUL94 V-0

All specifications

1775469-7 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions7
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.139\" (3.53mm)
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

SMT right-angle header for tight wire-to-board runs

It mates with a matching cable receptacle to route power or signal from a PCB to a wire harness. The 2.00mm pitch and right-angle SMT mounting keep the connector low-profile against the board edge, saving space in compact enclosures.

Solder retention and full shrouding for production reliability

Rated for automotive and industrial environments

Rated 3A per contact at 250V, with tin-plated brass contacts that suit moderate-cycle applications like automotive interior or industrial control panels.

Frequently asked questions

What is the pitch of 1775469-7?

The mating pitch is 0.079" (2.00mm), single row, 7 positions.

Is 1775469-7 RoHS compliant?

Yes, it is ROHS3 compliant.

Does 1775469-7 have solder retention features?

Yes, solder retention is listed as a feature to hold the part during SMT reflow.
