Application Range: Automotive to Medical
The 2-position count makes this header ideal for low-circuit-count connections such as sensor interfaces, power jumpers, or signal links where a compact, reliable interconnect is needed.

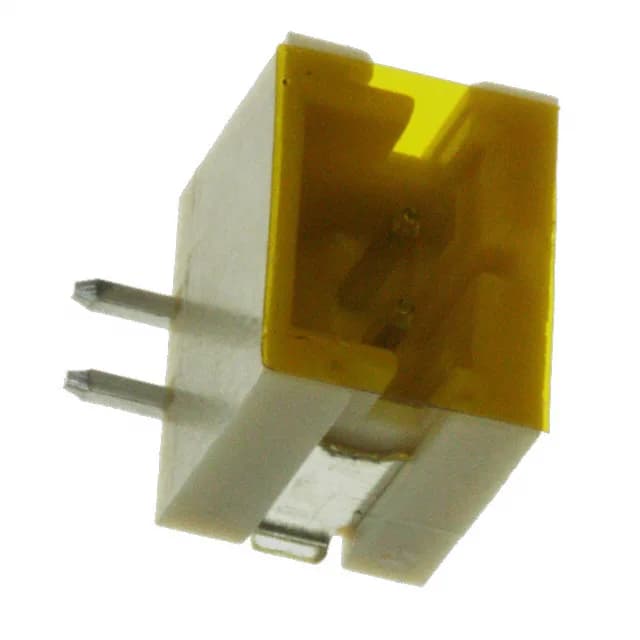

1775470-2 TE Connectivity 2-Pin 2mm Pitch SMT Header
MPN1775470-2
Active
TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1775470-2, 2-position single-row shrouded header, 2.00mm pitch, surface mount, 3A, 250V, UL94 V-0, natural insulation.
$0.9300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.242\" (6.14mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
Product details
Frequently asked questions
Where can I buy 1775470-2 and what is the lead time?
The 1775470-2 is available for order through independent distribution. Submit an RFQ for current availability and pricing.
What is the mating connector for 1775470-2?
As a board-to-cable/wire header, the 1775470-2 mates with a compatible 2.00mm pitch receptacle housing and crimp terminals. The specific mating part depends on the wire gauge and locking feature required; consult the HPI series mating table for exact part numbers.
