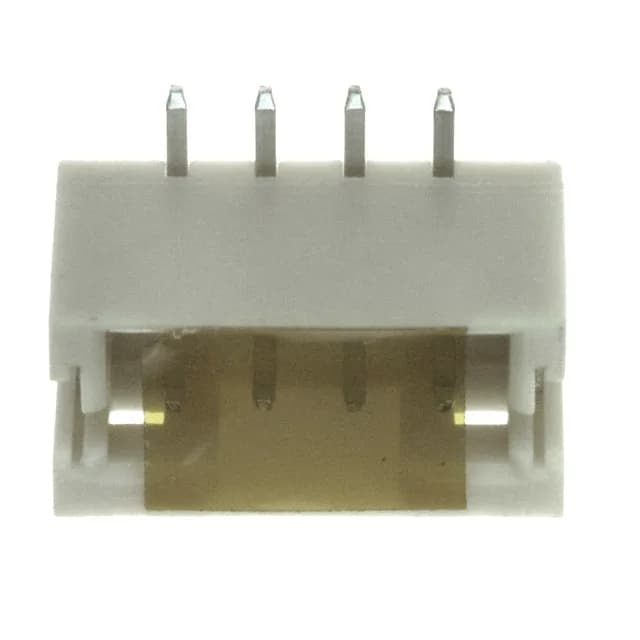

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1775470-4, Board to Cable/Wire, Header, Male Pin, SMD, 4 positions, 1 row, 2.00 mm pitch, 3 A, 250 V, tin plating, UL94 V-0, Natural.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.242\" (6.14mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1775470-4 is a 4-position, single-row, surface-mount pin header from TE Connectivity's High Performance Interconnect (HPI) series.
Termination is surface-mount solder, compatible with reflow assembly processes. Packaging options include Tape & Reel (TR) for automated pick-and-place and Cut Tape (CT) for prototyping or low-volume builds.
The 1775470-4 is a male pin header that mates with a female receptacle housing using 2.00 mm pitch crimp contacts. The specific mating part number depends on the wire gauge, circuit count, and locking feature required; consult the HPI series receptacle housings for compatibility.
The 1775470-4 has 4 positions in a single row, all loaded. The pinout is a straight 1x4 array; each pin is functionally identical unless otherwise specified by the circuit design.
The insulation height is 0.242" (6.14 mm) above the PCB surface. The contact mating length is 0.138" (3.50 mm). Total height above board depends on the mating receptacle.
