TE Connectivity AMP Connectors 1775470-6 — Pin Headers

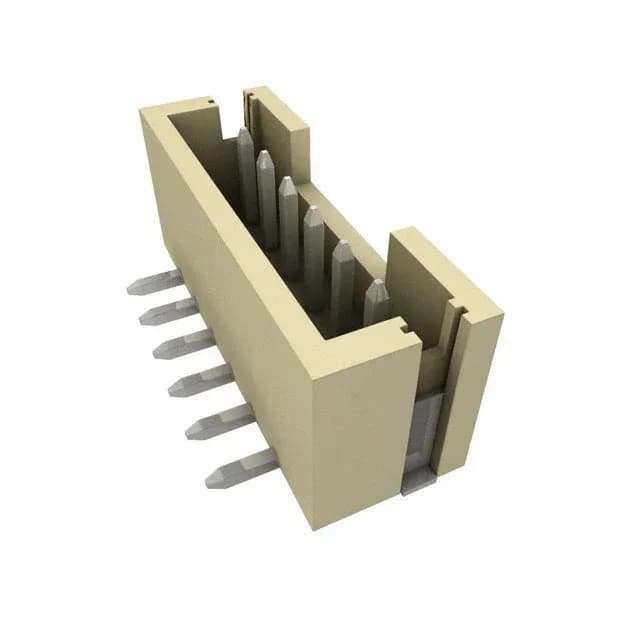

1775470-6 TE Connectivity Header SMD 6 Pos 2mm Pitch

MPN1775470-6
Active

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series header, SMD, 6 positions, 2.00 mm pitch, 3 A, 250 V, shrouded 4-wall, tin-plated contacts, UL94 V-0 natural PA9T housing.

$1.1200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1775470-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1775470-6 key specifications
ParameterValue
SeriesHigh Performance Interconnect (HPI)
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.242\" (6.14mm)
Insulation materialPolyamide (PA9T), Nylon 9T
Material flammability ratingUL94 V-0

All specifications

1775470-6 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions6
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.138\" (3.50mm)
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

SMT Mounting and Shrouded Protection

The 1775470-6: Surface-mount termination means this header is placed and reflowed alongside other SMD components — no through-hole soldering step.

It is ROHS3 compliant.

Peer Comparison: 1376366-8 vs. 1775470-6

It carries a higher current rating (5 A) and includes mounting brackets, but it's through-hole, not SMT, and has 8 circuits vs. 6. If your board is SMT-only and you need 6 positions, 1775470-6 is the fit; if you can accommodate through-hole and need more current or positions, 1376366-8 is an alternative.

Frequently asked questions

How can I order 1775470-6 or check stock?

1775470-6 is an active TE part, available through our sourcing channel. No stock-holding claim — sourced per order.

What is the mating connector for 1775470-6?

Confirm the receptacle part number with your harness builder; the header's 4-wall shroud keys the pair.

What applications is 1775470-6 suitable for?

Listed applications include automotive, general purpose, industrial, and medical equipment. The UL94 V-0 housing and -25°C to 85°C range support indoor and automotive cabin environments.
