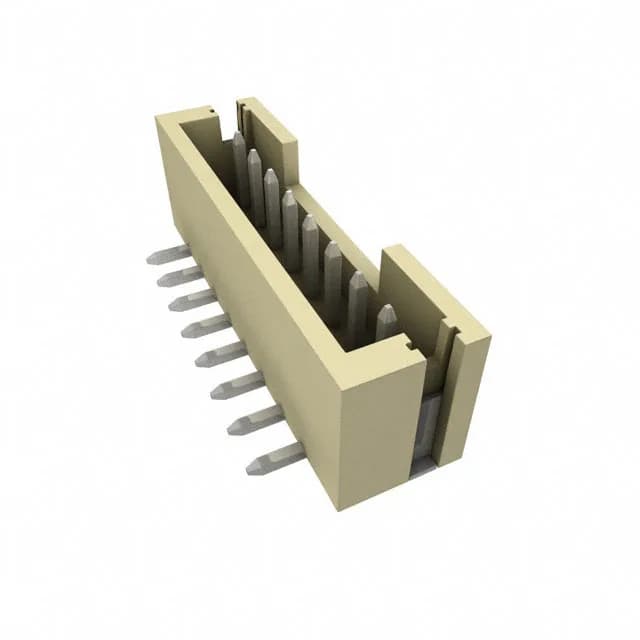

TE Connectivity AMP Connectors HPI series, 1775470-8, Board to Cable/Wire header, 8 positions, 0.079" (2.00 mm) pitch, shrouded 4-wall, SMT, 3 A, 250 V, -25°C ~ 85°C, UL94 V-0, Tin contacts, Active, RoHS3 compliant.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.242\" (6.14mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 0.079" (2.00 mm) pitch gives you a compact footprint for routing signals to a mating receptacle, while the shrouded 4-wall design protects the square male pins from damage during handling and mating.
The insulation height of 0.242" (6.14 mm) and mating pin length of 0.138" (3.50 mm) set the z-height budget for the mated pair.
The mating pitch is 0.079" (2.00 mm), single row, 8 positions. This is the footprint dimension for the PCB layout.
Yes, it is ROHS3 Compliant per the manufacturer's listing.
