The 1776242-4: This plug mates with a matching 3.50mm pitch header (typically a TE Connectivity terminal block header, such as the 1776242 base series). Termination uses a screw-driven rising cage clamp with an M2 screw. The clamp lifts to accept stripped wire, then tightens to secure the conductor — no ferrule required for stranded wire, though a ferrule improves reliability in high-vibration applications.

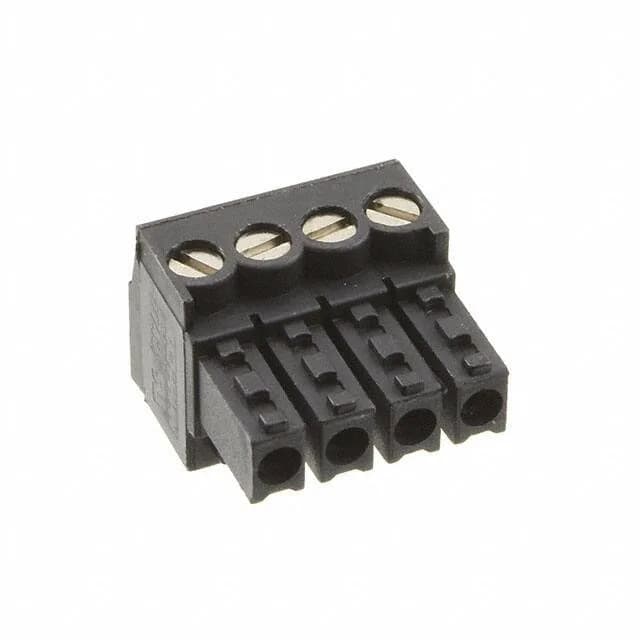

1776242-4 TE Connectivity 4-Position 3.5mm Plug
MPN1776242-4
Active
TE Connectivity AMP Connectors 1776242-4, Type Plug Female Sockets, 4 positions, 0.138" (3.50mm) pitch, Free Hanging (In-Line), Screw - Rising Cage Clamp, 14-30 AWG, UL94 V-0, Black, Bulk, Active, ROHS3 Compliant.
$3.9800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
Is the 1776242-4 RoHS compliant?
Yes, the 1776242-4 is ROHS3 Compliant per the manufacturer's listing.
What is the mating connector for the 1776242-4?
Confirm the header's orientation (vertical or right-angle) and locking mechanism to ensure fit.
Are there any substitutes for the 1776242-4?
Peer MPNs 1-2213934-1, 1-2305909-1, and 1-2213935-1 are from the same series with Active lifecycle and bulk packaging. Verify position count, pitch, and termination style match before substituting — no direct second-source is documented.
