TE Connectivity AMP Connectors 1776244-8
MPN1776244-8
Active

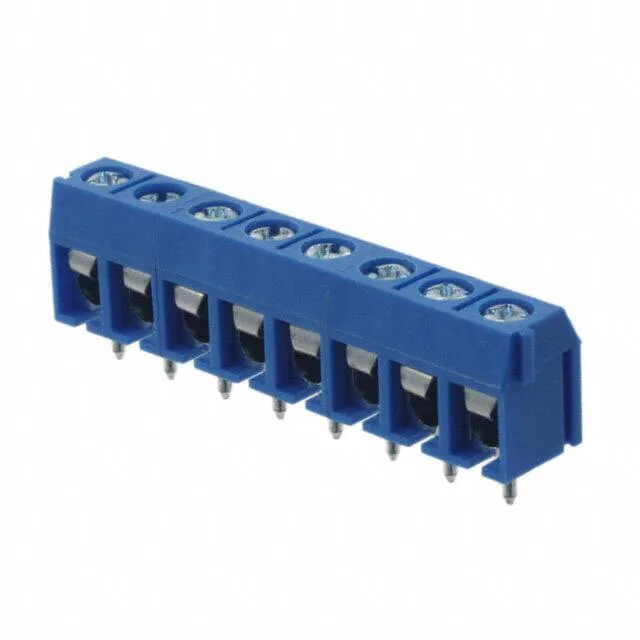

TERM BLK 8POS SIDE ENTRY 5MM PCB
$3.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-22 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -55°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel, Stainless |
| Screw material - plating | Steel, Galvanized - Chromate Plated |
| Contact material - plating | Brass - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2.6 |
| Torque - screw | 0.51 Nm (4.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 8 |
