TE Connectivity AMP Connectors 1776252-2
MPN1776252-2
Active

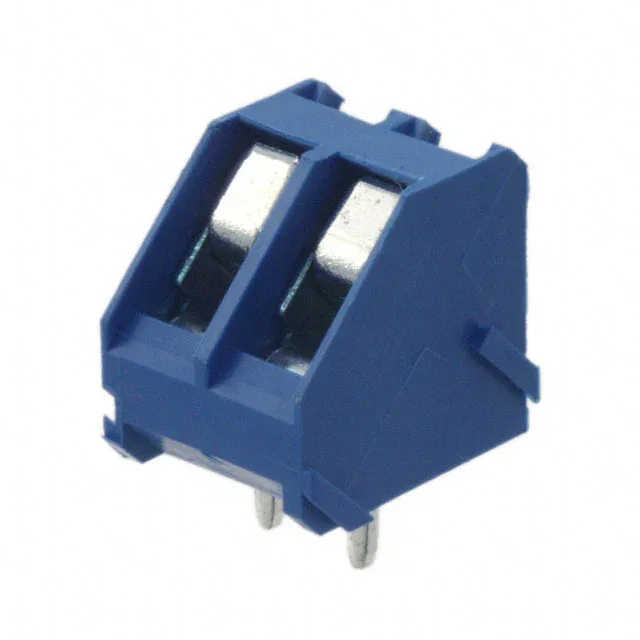

TERM BLOCK 2POS 45DEG 5MM PCB
$1.53Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-22 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -55°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Screw material - plating | Steel, Galvanized - Chromate Plated |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2.6 |
| Torque - screw | 0.45 Nm (4.0 Lb-In) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 2 |
