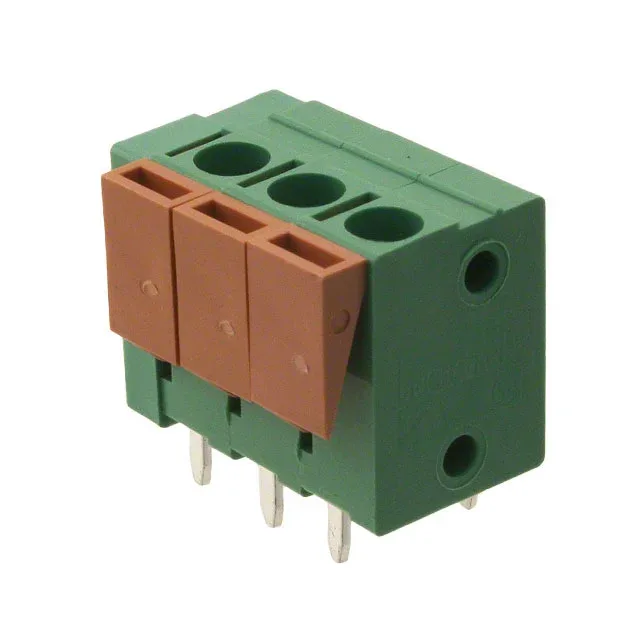

TE Connectivity AMP Connectors 1776260-3
MPN1776260-3
Active
TERM BLK 3POS TOP ENT 5.08MM PCB
$3.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-22 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -55°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass - Nickel Tin Plated |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 3 |
