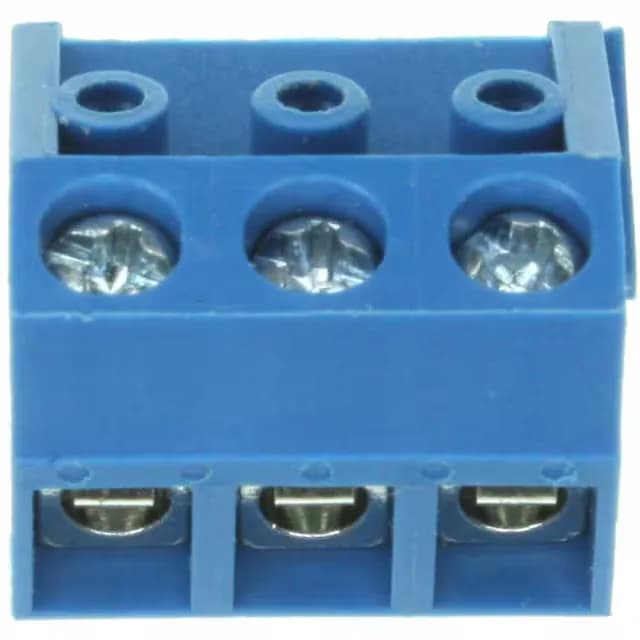

TERM BLOCK PLUG 3POS 90DEG 5MM
$2.5200Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | Buchanan |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.2-1.4mm² |
| Operating temperature | -40°C~105°C |
| Color | Blue |
| Contact material | Brass |
| Insulation height | 0.433\" (11.00mm) |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw size | M2.6 |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
Sourcing this connector
TE Connectivity AMP Connectors 1776263-3 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against TE Connectivity AMP Connectors and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
