TE Connectivity AMP Connectors 1776302-6
MPN1776302-6
Active

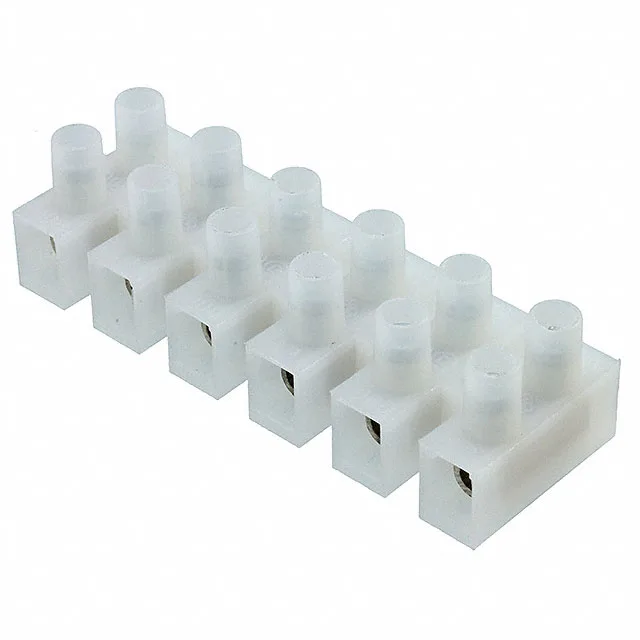

CONN TERM STRIP 6CIRC 0.472"
$8.44Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTSB1000, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TSB1000, Buchanan |
| Barrier type | Enclosed |
| Mounting | Chassis, Panel |
| Terminal block type | Eurostyle Terminal Strip |
| Voltage rating | 250V |
| Current rating | 40A |
| Wire gauge | 10-22 AWG |
| Terminal screw finish | Zinc, Non-Hexavalent Chromate |
| Number of wire entries | 12 |
| Terminal screw material | Steel |
| Operating temperature | 100°C |
| Color | Natural |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Pitch | 0.472\" (12.00mm) |
| Package | Bulk |
| Rows | 2 |
| Top termination | Screws |
| Bottom termination | Closed |
| Number of circuits | 6 |
