Power Double Lock 2-Position Plug Housing — 3.96mm Pitch, Contacts Sold Separately
The 0.156" (3.96mm) pitch gives enough spacing for 20-16 AWG power circuits without crowding the harness.

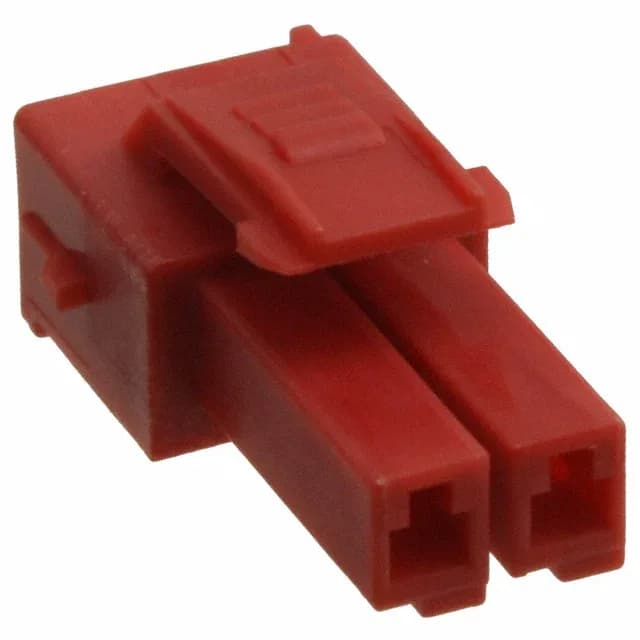

This is the plug (female socket) half of the connection. It mates with the corresponding Power Double Lock header (male pin) of the same 0.156" (3.96mm) pitch and 2-circuit count — don't order half a connection. The crimp termination accepts the TE Power Double Lock female socket contacts (typically part number 1-917806-1 or similar, verify wire gauge range against your harness). The latch lock engages audibly when fully seated; the red colour is a visual cue for line-side identification in multi-connector harnesses.
The bulk packaging (loose pieces) suits low-to-mid volume harness builds without tape-and-reel minimums.
The 1-1376477-6 is a 6-position plug housing in the same Power Double Lock family but at a tighter 0.098" (2.50mm) pitch. Both use a latch lock, free-hanging mount, and female socket contacts. The 177898-2's 0.156" pitch handles heavier wire gauges and higher current per circuit than the 2.50mm version — choose the 2-position when the circuit count is fixed and the wire size needs the wider spacing.
