TE Connectivity AMP Connectors 177905-1 — Connector Housings

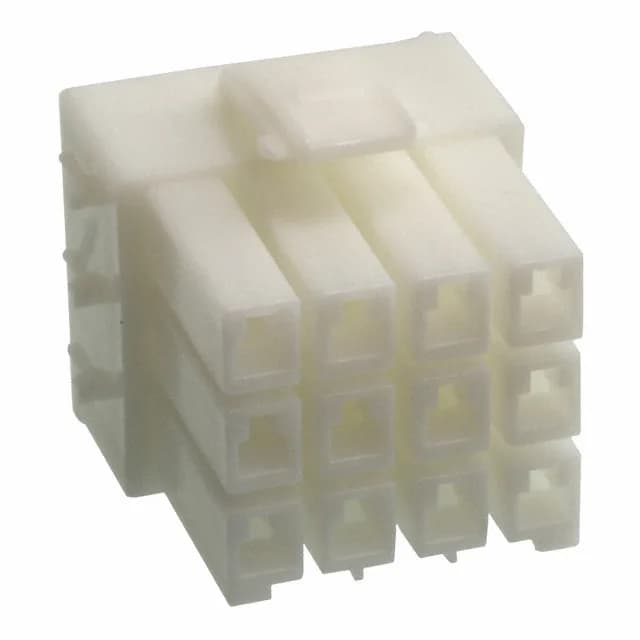

177905-1 TE Power Double Lock Plug Housing, 12 Pos, 3.96mm

MPN177905-1
Active

TE Connectivity Power Double Lock series, 177905-1, plug housing, 12 positions, 3 rows, 0.156" (3.96mm) pitch, 0.181" (4.60mm) row spacing, latch lock, natural PA66, free hanging, crimp termination, contacts not included.

$1.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Double Lock
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

177905-1 specifications
ParameterValue
SeriesPower Double Lock
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.156\" (3.96mm)
PackageBulk
Row spacing0.181\" (4.60mm)
Rows3
Contact terminationCrimp
Positions12

Product details

The 177905-1 is a 12-position, 3-row plug housing from TE's Power Double Lock series, on a 0.156" (3.96mm) pitch with a 0.181" (4.60mm) row spacing. This is a wire-to-board connector housing — it mates with a PCB header (sold separately) to distribute power across multiple circuits. The 3-row layout suits applications where board space is tight but you need more than a single-row 12-position housing can offer.

Without those terminals, the housing is just an empty shell. Compared to a single-row 6-position sibling like 1-1376477-6 (0.098" pitch), this 12-position, 3-row housing carries more circuits in a wider footprint but with a larger 3.96mm pitch that handles higher current per contact. The trade-off is board space vs current capacity.

Frequently asked questions

Is 177905-1 RoHS compliant?

Yes, it is ROHS3 compliant.
