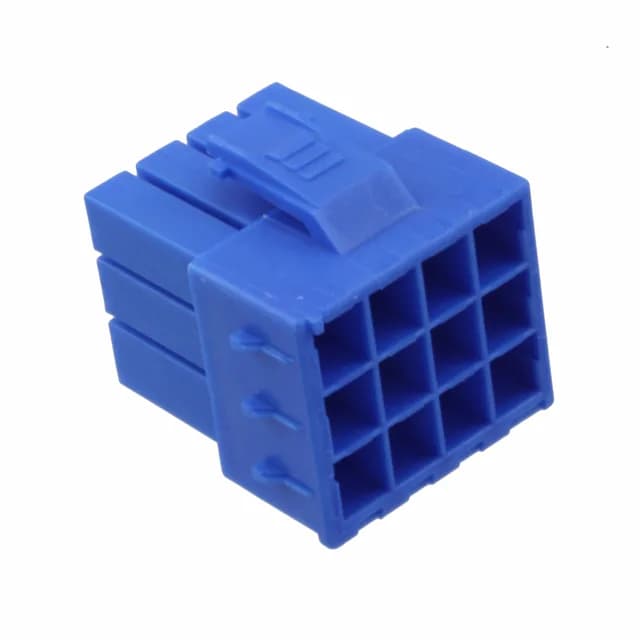

12-Position Plug Housing for Power Double Lock Harnesses
The housing is molded from blue PA66 (Nylon 6/6) rated for -30°C to 105°C operation, making it suitable for under-hood, industrial cabinet, and appliance environments that see temperature cycling.
Pitch and Row Layout — 3.96mm x 3 Rows
The 0.156" (3.96mm) pitch and 0.181" (4.60mm) row spacing define the mating footprint. Three rows at 12 positions means the contact layout is 4 per row — a common pattern for Power Double Lock connectors.
You need the matching Power Double Lock female crimp socket terminals (TE part number 1-917806-1 or similar) to populate the 12 cavities. The housing accepts the crimp terminals, which are then locked in place by the housing's integrated retention tines. Factor the terminal order into your BOM; the housing alone will not complete a wire harness.
