TE Connectivity AMP Connectors 177906-1 — Connector Housings

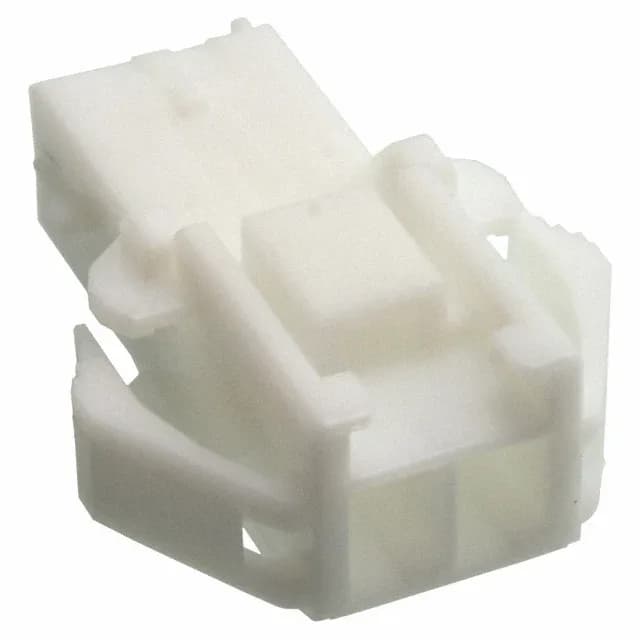

TE Connectivity 177906-1 Power Double Lock Receptacle

MPN177906-1
Active

TE Connectivity Power Double Lock receptacle housing, 177906-1, 2 positions, 1 row, 0.156" (3.96mm) pitch, panel mount snap-in, crimp termination, natural PA66, latch holder, -30°C to 105°C.

$0.6300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 177906-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesPower Double Lock
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

177906-1 specifications
ParameterValue
SeriesPower Double Lock
TypeTab
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-30°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.156\" (3.96mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

2-Position Power Double Lock Receptacle Housing

The TE Connectivity 177906-1 is a 2-position receptacle housing from the Power Double Lock series, designed for wire-to-wire or wire-to-panel power interconnects. It carries a 3.96 mm pitch and a single row layout, with a natural PA66 (Nylon 6/6) housing rated for -30°C to 105°C operation. The housing uses a latch holder for positive retention and mounts via panel snap-in, making it suited for harness assemblies that need a secure, vibration-resistant connection in appliance, automotive, or industrial equipment.

Terminal and Mating Half

This housing accepts tab-type crimp terminals (contacts not included — order separately). The mating half is the corresponding Power Double Lock header or plug with 3.96 mm pitch and tab contacts. The latch holder on the housing engages with the mating connector's latch to lock the pair together, which prevents accidental disconnection under cable strain or vibration.

Frequently asked questions

Where can I buy 177906-1 and how do I get a price?

Submit a request for quote (RFQ) with your target quantity, and we will confirm availability and current pricing at quote time.

What contacts are compatible with 177906-1?

The 177906-1 housing accepts tab-type crimp terminals, but contacts are not included with this part. You will need to order the matching Power Double Lock crimp terminal separately — typically the TE 177904-1 or 177904-2 tab terminals for the appropriate wire gauge.

What is the mating connector for 177906-1?

The mating half is a Power Double Lock header or plug with 3.96 mm pitch and tab contacts that engages the latch holder on this receptacle housing. Common mates include TE 177905-1 (2-position header) or the corresponding plug housing with the same pitch and latch feature.
