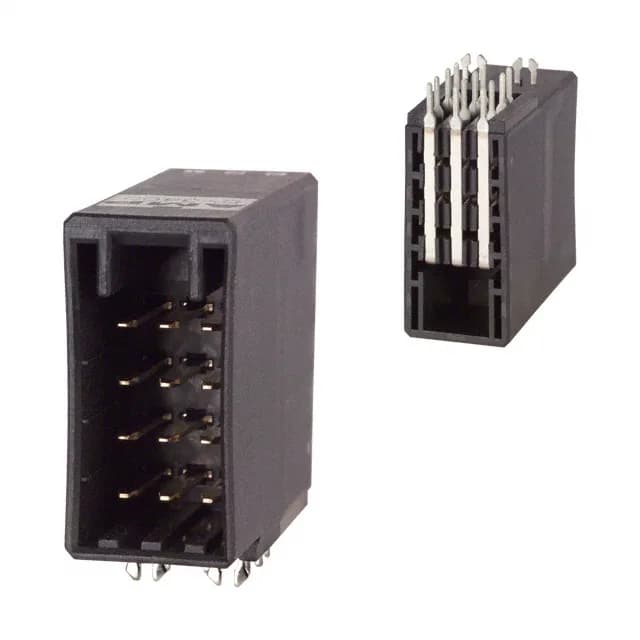

TE Connectivity AMP Connectors Dynamic D-3400 series header, 178216-2, 12 positions, 0.150" (3.81mm) pitch, right-angle through-hole, shrouded 4-wall, gold mating finish, board lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3400 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.244\" (31.60mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 4 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 12 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Its 0.150" (3.81mm) pitch and 4-row layout with 0.200" (5.08mm) row spacing give a dense but serviceable footprint.
Rated 250V and -55°C to 105°C, with a UL94 V-0 thermoplastic housing — suitable for general-purpose and industrial applications inside an enclosure.
The mating pitch is 0.150" (3.81mm), with a row spacing of 0.200" (5.08mm).
Yes, it is ROHS3 compliant.
It is listed as Board to Board or Cable.
