TE Connectivity AMP Connectors 178289-3 — Connector Housings

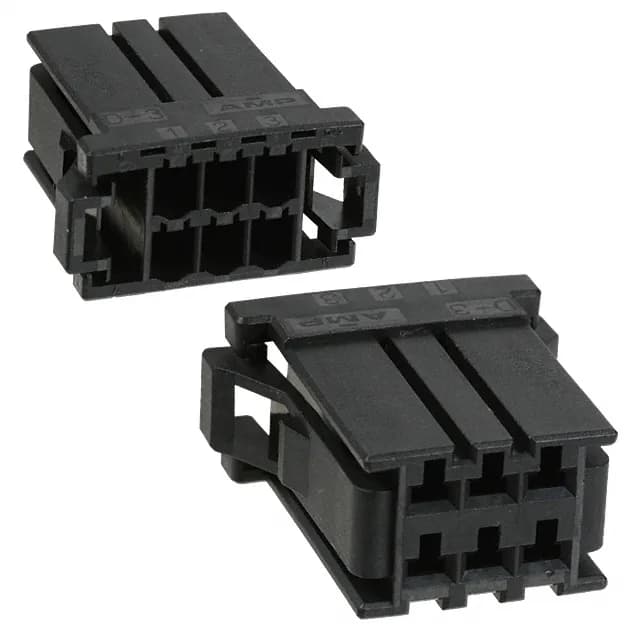

TE Connectivity 178289-3 Dynamic D-3100 Receptacle Housing

MPN178289-3
Active

TE Connectivity Dynamic D-3100 receptacle housing, 178289-3, 6 positions, 2 rows, 3.81mm pitch, 5.08mm row spacing, crimp termination, free hanging, black thermoplastic, RoHS.

$1.1600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

178289-3 specifications
ParameterValue
SeriesDynamic D-3100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.150\" (3.81mm)
PackageBulk
Row spacing0.200\" (5.08mm)
Rows2
Contact terminationCrimp
Positions6

Product details

The 3.81 mm pitch and 5.08 mm row spacing match the Dynamic D-3100 pin header family, making this the wire-side half of a wire-to-board interconnect.

The 3.81 mm pitch and 5.08 mm row spacing are the dimensions that lock the board footprint. The 2-row layout gives a compact 3-by-2 arrangement, with each position accepting a separate crimp terminal.

The housing does not ship with contacts. The crimp termination gives a gas-tight connection suitable for production harness builds. The housing's free-hanging design means it terminates the wire harness side, not the board.

Frequently asked questions

Is 178289-3 a receptacle housing or a plug housing?

It is a receptacle housing — it accepts female socket contacts and mates with a Dynamic D-3100 pin header (the plug side).

What contacts are compatible with 178289-3?

The housing accepts Dynamic D-3100 series female crimp socket contacts. The contacts are not included with the housing and must be ordered separately.

What is the pitch and row spacing of 178289-3?

The pitch is 3.81 mm (0.150") and the row spacing is 5.08 mm (0.200"). It is a 2-row, 6-position layout.

Where can I buy 178289-3?

This part is sourced to order against your BOM quantity.
