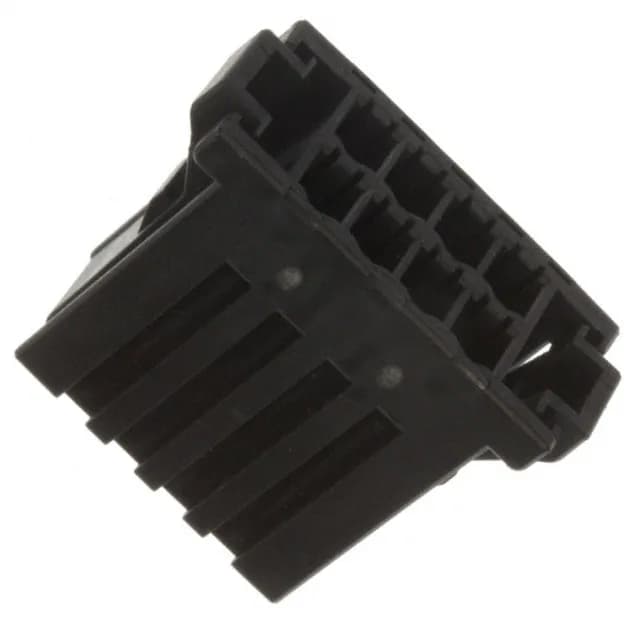

8-Position, 3.81 mm Pitch — Receptacle Housing for Crimp Terminals
It uses a 3.81 mm pitch with a 5.08 mm row spacing, giving you enough room between contacts to run 20–24 AWG wire without crowding. That means you can re-pin a damaged harness on site with a basic crimp tool, as long as you have the terminals on hand.
The dual-row arrangement with 5.08 mm row spacing means the housing is compact enough for a 16 mm-wide bundle, but still leaves room for finger-friendly terminal insertion. If you're replacing a damaged 8-circuit connector in a machine tool or conveyor line, this housing crosses into the Dynamic D-3100 terminal system — you keep the existing wire and just re-pin. The free-hanging design means no board lock or mounting ears — it relies on the primary latch and the terminal retention in the cavity.
