TE Connectivity AMP Connectors 178289-5 — Connector Housings

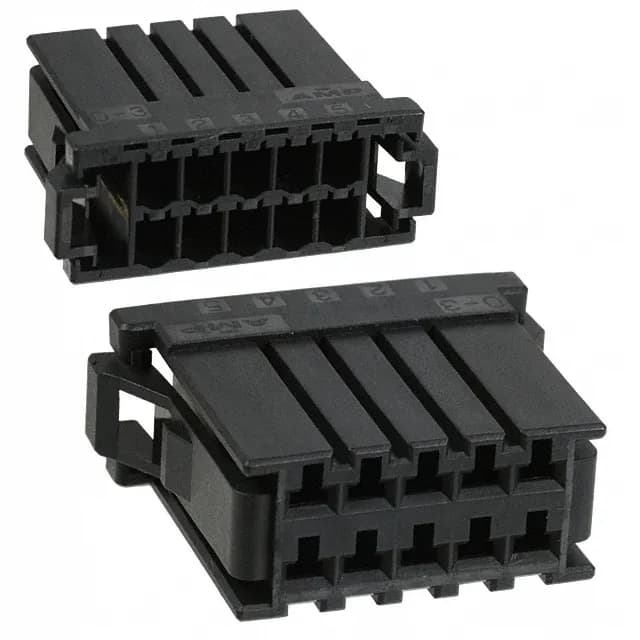

TE Dynamic D-3100 178289-5, 10 Pos Receptacle Housing

MPN178289-5
Active

TE Connectivity Dynamic D-3100 receptacle housing, 10 positions, 2 rows, 0.150" (3.81mm) pitch, 0.200" (5.08mm) row spacing, free-hanging, crimp termination, black thermoplastic housing, contacts not included.

$1.0700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

178289-5 specifications
ParameterValue
SeriesDynamic D-3100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.150\" (3.81mm)
PackageBulk
Row spacing0.200\" (5.08mm)
Rows2
Contact terminationCrimp
Positions10

Product details

10-Position Receptacle Housing for the Dynamic D-3100 Series

It uses a 0.150" (3.81mm) pitch between contacts and a 0.200" (5.08mm) row spacing across its two rows, giving a compact but serviceable footprint for power and signal circuits in industrial control, automotive, and appliance harnesses.

The 10-position count matches a 10-circuit harness or PCB header. The 3.81mm pitch is wider than typical signal connectors, giving more room for larger-gauge wire and higher creepage — the Dynamic D-3100 series is built for power distribution, not dense signal routing. The 178289-4 (8 positions) is the smallest dual-row member in this subfamily.

Crimp Termination — Contacts Are Ordered Separately

The crimp termination allows field-termination of individual wires, then insertion into the housing. The black thermoplastic housing provides polarization and a positive latch to prevent accidental unmating under vibration.

Frequently asked questions

What is the mating connector for 178289-5?

The 178289-5 receptacle housing mates with a Dynamic D-3100 series pin header. The header is typically a through-hole or right-angle PCB-mount version with the same 0.150" (3.81mm) pitch and dual-row layout. The exact header part number depends on the required orientation and mounting style — confirm the header's position count and termination type against your board layout.

Which contacts are compatible with 178289-5?

The 178289-5 accepts Dynamic D-3100 series female socket crimp terminals. The contacts are not included with the housing and must be ordered separately. Use the TE Dynamic D-3000/D-3100 crimp socket terminal for the wire gauge your harness requires — the terminal's current rating and wire range are specified in its own datasheet.

Where can I buy 178289-5?

This part is sourced per RFQ.
